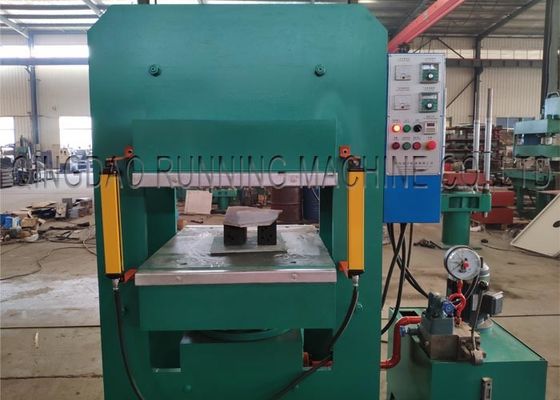

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T

Customer Reviews
We have purchased several different heat press machines from China. This by far has the evenest temperatures across the two plates and with shore heating time. Really liking this press. very short delivery time, I purchased this item on 9/7/21 and it was delivered on 10/9/21. I was very pleased to have it delivered so fast. Thanks

—— Jay Crue

The press machine looks really beautiful, I look forward to buying another one. Thank you.

—— Darin R.

Hi lily, I have been told that we are having great success with the cooling press but have not been able to get a good lap using the skiving machine. Your help & cooperation is greatly appreciatd. Thank you. Jim Raudenbush

—— Jim Raudenbush

Good morning Daisy I have received the Ply separatorand it works good! Thanks for all your help.I will let you know when I need another piece of equipment for my belt shop. Karmen Bidleman

—— Karmen Bidleman

Everything works as required. everything is within specs. As expected for price and origin one must connect power water, and lubricate before use. Once this is done it operates well. Package was sturdy and contained everything without damage

—— Samuel Meredith

The delivery was fast, thanks to Lily's timely feedback of pictures and videos during the production process. The vulcanizer looks very stable and the details are well handled. You can use it directly after receiving it. The cowshed mat made is very good and the surface is smooth. Many thanks.

—— Ulugbek

I'm Online Chat Now

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T
Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T
Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T

Large Image :  Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: XLB-D750*850*1/1.60MN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,000-$8,000
Packaging Details: Plywood case (Fumigation-free)
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets/month

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T

Description
Clamping Force: 160T Platen Size: 750*850mm
Stroke: 300mm Platen Daylight: 300mm
Heating: Electrical Driving Motor: 3kw
High Light:

Hydraulic Molding Rubber Vulcanizing Press Machine

,

Oil Seal Rubber Vulcanizing Press Machine

,

160T Rubber Vulcanizing Machine

160T Pressure 750 * 850mm Platen Rubber Oil Seal Hydraylic Molding Vulcanizing Press Machine



Vulcanizing progress is a chemical process in which the rubber is heated with sulphur, accelerator and activator at 140–160°C. The process involves the formation of cross-links between long rubber molecules so as to achieve improved elasticity, resilience, tensile strength, viscosity, hardness and weather resistance.



Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 0



What can be made by this Rubber Vulcanizing Press Machine?



Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 1



Specification of Rubber Vulcanizing Machine:



Model XLB-D750*850*1/1.60MN
Clamping force 160T
Platen size 750*850mm
Stroke 300mm
Platen daylight 300mm
Heating Electrical, 17.1kw
Driving motor 3kw
Control model Relay automatic control with safety grating



Control panel of Rubber Vulcanizing Press Machine:



Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 2



To keep the safe of operator, there is safety grating equipped on the rubber vulcanizing press machine.



Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 3



Other related rubber machines:



Rubber Kneader Machine

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 4



Rubber Mixing Mill

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 5



Rubber Bale Cutter

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 6



Rubber Strip Cutting Machine

Platen Oil Seal Hydraulic Molding Rubber Vulcanizing Press Machine 160T 7



We also make lots of other rubber machines, like Rubber extruder, Rubber compound cooling line, Rubber inejction molding machine etc.

For more details please feel free to contact us!
