Product Details:
|
| Name: | Hydraulic Vulcanizing Machine | Clamping Force: | 400T |
|---|---|---|---|
| Cylinder Diameter: | φ285mm | Plunger Stroke: | 400mm |
| Heating Plate Size: | 900*1500*60mm | Plates Daylight: | 200mm |
| Heating: | Electrical Heating | ||
| Highlight: | Electrical Heating Hydraulic Vulcanizing Machine,2 Layers Hydraulic Vulcanizing Machine,2 Layers vulcanizing press machine |
||

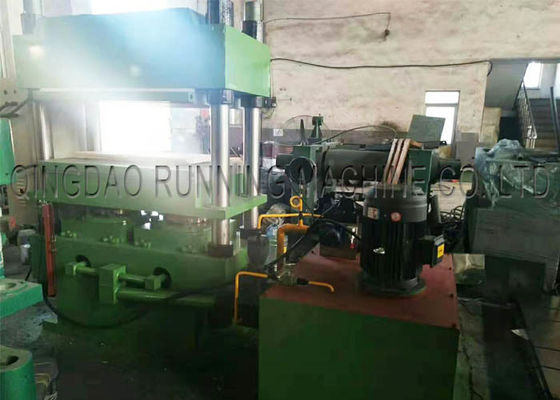

Electrical Heating Hydraulic Vulcanizing Machine 2 Working Layers
Hydraulic Vulcanizing Machine is suitable for hot pressing, vulcanizing sample making and pressing into products.For example: film
switch, horn film, and another concave and convex surface hot stamping molding, thin film hot bonding, electrical products such as compression molding, etc.
Machine Specifications:
| Model | XLB-D900×1500×1/4.00MN |
| Total Pressure | 400T |
| Heating plate size | 900×1500×60mm |
| Unit Area Pressure | 29.6kg/cm2 |
| Amount of hydraulic piston | 4 sets |
| Working Hydraulic Pressure | 16Mpa |
| Amount of working layer | 2 |
| Daylight | 200mm |
| Plunger stroke | 400mm |
| Structure | Frame type |
| Heating method | Electrical heating |
| Mould closing speed | ＞12mm/s |
| Control mode | Relay control |
Machine introduction:
Effective synchronizing mechanism:
Reasonable hydraulic oil circuit design ensures the same flow for of each cylinder.
Good design guide and support structure:
The heating plates has T-shape slot for fixing mould:
Packaging of Rubber vulcanizing press machine:
We can design & make equipments according to your machine requirement or product size!
