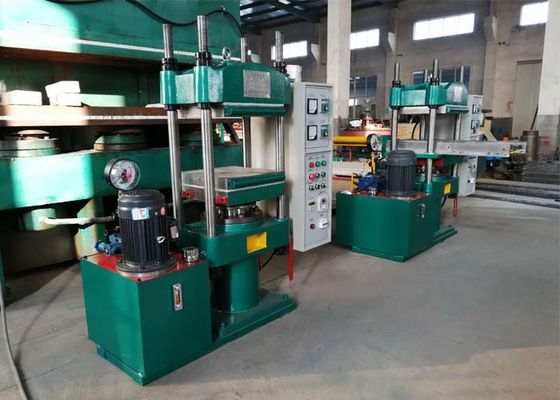

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine
Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine

Large Image :  Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: CE ISO9001
Model Number: XLB-D400*400*1/0.50MN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood case (Fumigation-free)
Delivery Time: 7~15days
Payment Terms: T/T, L/C
Supply Ability: 50 sets/month

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine

Description
Application: Making Rubber Products Clamping Force: 0.80MN
Heating Plate Size: 400*400mm Plates Daylight: 300mm
Stroke: 300mm Cylinder Material: Nodular Cast Iron
Plunger Material: Chilled Cast Iron
High Light:

Pressure Rubber Vulcanizing Machine

,

50T Rubber Vulcanizing Machine

50T Pressure Rubber Parts Vulcanizing Press Machine with Optional Manual/Automatic Mould Sliding System



Application:



The Hydraulic Rubber Molding Press Machine is the necessary machine used in rubber factory. We can design & manufacture non-standard machine as your requirement.







Machine specification:



Model

XLB-D400×400×1/0.50MN

Total Pressure

50T

Heating plate size

400×400×56mm

Unit Area Pressure

31kg/cm2

Amount of hydraulic piston

1 set

Working Hydraulic Pressure

16Mpa

Amount of working layer

1

Daylight

300mm

Plunger stroke

300mm

Driving motor

2.2kw

Structure

Column type

Heating method

Electrical heating

Mould closing speed

>12mm/s

Control mode

Manual control



Other related machines:

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 0

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 1

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 2

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 3



Our processing workshop:

Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 4



Machine delivery:



Cast Iron 0.80MN 50T Pressure Rubber Vulcanizing Machine 5
