80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device

Customer Reviews
We have purchased several different heat press machines from China. This by far has the evenest temperatures across the two plates and with shore heating time. Really liking this press. very short delivery time, I purchased this item on 9/7/21 and it was delivered on 10/9/21. I was very pleased to have it delivered so fast. Thanks

—— Jay Crue

The press machine looks really beautiful, I look forward to buying another one. Thank you.

—— Darin R.

Hi lily, I have been told that we are having great success with the cooling press but have not been able to get a good lap using the skiving machine. Your help & cooperation is greatly appreciatd. Thank you. Jim Raudenbush

—— Jim Raudenbush

Good morning Daisy I have received the Ply separatorand it works good! Thanks for all your help.I will let you know when I need another piece of equipment for my belt shop. Karmen Bidleman

—— Karmen Bidleman

Everything works as required. everything is within specs. As expected for price and origin one must connect power water, and lubricate before use. Once this is done it operates well. Package was sturdy and contained everything without damage

—— Samuel Meredith

The delivery was fast, thanks to Lily's timely feedback of pictures and videos during the production process. The vulcanizer looks very stable and the details are well handled. You can use it directly after receiving it. The cowshed mat made is very good and the surface is smooth. Many thanks.

—— Ulugbek

I'm Online Chat Now

80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device

80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device
80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device
80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device 80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device

Large Image :  80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: XLB-D900*1500*2/4.00MN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: By FCL
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device

Description
Clamping Force: 400T Cylinder Diameter: φ285mm
Qty. Of Cylinder: 4 Sets Plunger Stroke: 400mm
Heating Plate Size: 900*1500*60mm Heating Method: Electric Heating / Oil Heating
Plates Daylight: 200mm Control Mode: Relay Automatic Control
Operating Voltage: 380V 50HZ 3Phase Or Customized
High Light:

500*500mm Rubber Vulcanizing Press

,

400T Rubber Vulcanizing Press Machine

80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device



Rubber hydraulic molding machine is mainly used for molding&vulcanizing rubber/silicone/synthetic rubber etc. like Rubber seals, O-rings, Rubber gaskets, insulation mats, bullpen mats etc. It is also suitable for molding polyurethane and plastic products, like HDPE plates etc.



Machine Specifications:



Model XLB-D500×500×1/0.80MN
Total Pressure 80T
Heating plate size 500×500×56mm
Unit Area Pressure 32kg/cm2
Amount of hydraulic piston 1 set
Working Hydraulic Pressure 16Mpa
Amount of working layer 1
Daylight 300mm
Plunger stroke 300mm
Structure Four column type
Heating method Electrical heating
Mould closing speed >12mm/s
Control mode Relay control with automatic mould sliding plate

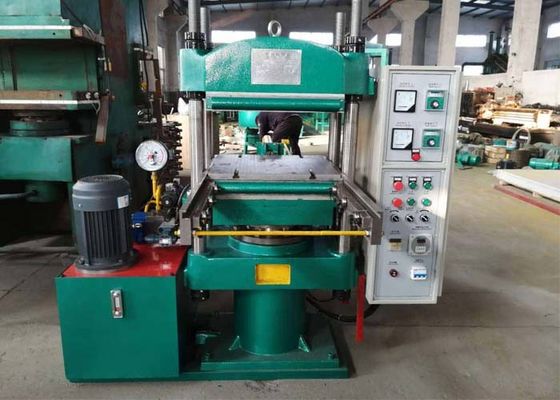

Machine introduction:



80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device 0



The heating plates has T-shape slot for fixing mould:

80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device 1



Our Workshop:



80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device 2



Packaging of Rubber vulcanizing press machine:



80T Pressure 500*500mm Rubber Vulcanizing Press Machine with Automatic Mould Sliding Device 3



We can design & make equipments according to your machine requirement or product size!
