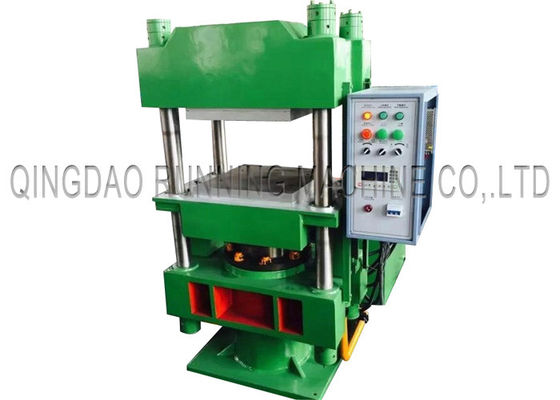

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine
Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine
Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine

Large Image :  Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: XLB-D500*500*1/0.80MN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood case
Delivery Time: 15~21days
Payment Terms: L/C, T/T
Supply Ability: 50sets/month

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine

Description
Application: Molding Rubber Products Clamping Force: 0.80MN (80T)
Heating Plate Size: 500*500mm Plates Gap: 300mm
Plunger Diameter: 250mm Plunger Stroke: 300mm
Driving Motor: 2.2kw
High Light:

rubber vulcanizing machine

,

rubber compression molding machine

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine



Application:



Silicon rubber bracelets molding machine is mainly used for making molded rubber / silicon products, like bracelets, O-ring, rubber seals, rubber gaskets, rubber mats and other molding products.

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine 0

Silicon Rubber Seals Moulding Machine Hydraulic Molding Machine 1



Simple introduction:



1.Low energy consumption
2.Convenient in maintenance
3.High capacity with simple operation



Machine pictures & specifications:



Item XLB240×240×2 XLB350×350×2 XLB400×400×2 XLB500×500×2 XLB600×600×2 XLB700×700×2
Total pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20
Daylight (mm) 125 125 125 125125 125 200
Platen Layers 2 2 2 2 2-4 2
Unit area pressure of hot plate(Mpa) 2.60 2.04 3.13 2.52 2.77 2.45
Piston stroke (mm) 250 250 250 250 250 250
Heating mode Electricity Electricity Electricity/
Stream
Electricity/
Stream
Electricity/
Stream
Electricity/
Stream
Main motor power (KW) 2.2 2.2 2.2 2.2 2.2 2.2
Size: L × W × H (mm) 1200×350×1300 1400×480×1380 1600×500×1480 1750×600×1540 1880×720×1680 2000×850×1750
