Product Details:
|
| Application: | Vulcanizing/making Conveyor Belt | Material Of Cylinder: | Nodular Cast Iron |
|---|---|---|---|
| Material Of Plunger: | Chilled Cast Iron | Apply Voltage: | 380V 50HZ Or Customized |
| High Light: | rubber vulcanizing machine,rubber compression molding machine |
||

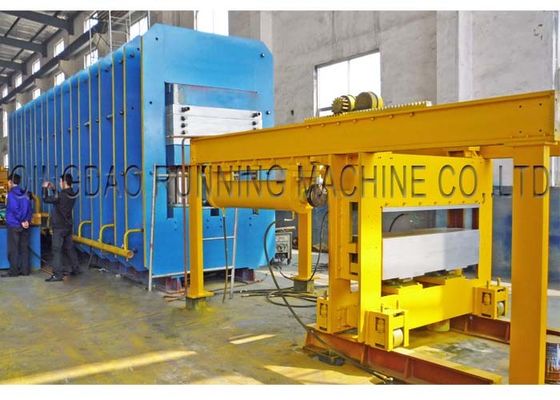

Steel Cord Conveyor Belt 10 meters Hydraulic Vulcanizing Equipment / Conveyor Belt Hydraulic Molding Machine
Application & Introduction:
The line of conveyor belt vulcanizing press is of high automation level and compact advanced structure.
suitable to vulcanize giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc
The main machine is of frame structure and equipped with special purpose hydraulic unit. Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance.
The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide with high efficiency of production and low intensity of labor
Technical Data:
| Type | XLB-Q | XLB-Q | XLB-Q | XLB-Q | XLB-Q |
| Performance Parameter | 1200x2700x1 | 1300x3000x1 | 1400x8000x2 | 1400x2500x1 | 2000x2500x1 |
| Nominal molding power(MN) | 8.5 | 12 | 34 | 12 | 14 |
| Piston stroke(mm) | 250 | 250 | 400 | 500 | 250 |
| Hot Plate Pressure Per Unit Area | 2.6 | 3.08 | 3.1 | 3.4 | 2.88 |
| Working layer number | 1 | 1 | 2 | 1 | 1 |
| Main motor power(KW) | 5.5 | 7.5 | 37.5 | 19 | 22 |
| Plate clearance(mm) | 250 | 250 | 200 | 500 | 250 |
| Overall Size (LxWxH)(mm) | 1700x1860x2600 | 3000x2100x3360 | 8000x2400x3800 | 2500x3100x3600 | 3520x2900x3550 |
| Weight (kg) | 20000 | 26000 | 121000 | 22000 | 55000 |
| Hot Plate Specs(mm) | 1200x2700 | 1300x3000 | 1400x8000 | 2000x2500 | 2000x3200 |
