|Auto:||Automatic||Heating Type:||Electrical Or Oil Or Steam|
|Hs Code:||84778000||Quality Guarantee:||5 Yrs|
|Rubber Compression Plate Hydraulic Vulcanizing Press Machine Vulcanizer With PLC Control System:||Offer|
rubber vulcanizing equipment,
rubber compression molding machine

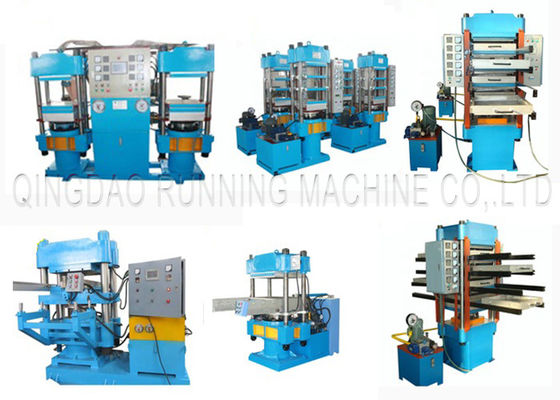

Production Name: 2019 Hot Sale with CE certificate Rubber Molding Press Machine for Shoes one station two press to Pakistan
The rubber plate vulcanizing press is high precision 4 pillar guiding. The main machine is consist of up plate(also called up beam), down machine seat, move plate(move platform), oil cylinder and pillars. The oil cylinder is piston type, the piston installed into the down machine seat. Customer can choose to install two fast return cylinder at the machine two sides.
The plate vulvanizing press has independent power mechanism and electrical system . The control box is positioned at the right side of the main machine. The machine adopts PLC control, equipped with LCD display screen. Buttons centralized control, easy to operate. Working pressure and heating temperature can be adjusted. The machine has manual operation mode and half automatic operation mode for choice.
The rubber plate vulcanizing press is single machine single pump station structure. Customers can also choose double(duplex) machine or multi machine connect work together. Hydraulic system and electrical system all have overload protection.
When the machine work, piston move from down to up to close the mold, compress the products into shape.
Rubber products plate vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ... )plate vulcanizing and compression molding. The rubber plate vulcanizing press can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.. The plate vulcanizing press can also be used to make bakelite products molding, and other thermalsetting plastic. The machine can be used to make foam products, foam resin,thin metal, construction material compression molding.
1.Frame: The material is Q345 steel welded, and using Co2 protection welding process. high strength, no air hole, not easy broken, then using the tempering process, to release the internal stress. It is not out of shape, using the CNC machining center treatment finally.
2.Heating pipes: Stainless steel SUS304 ,long using life
3.Plunger: Vanadium and titanium Alloy Chilled Cast Iron, High hardness (68~72HS )and good abrasion , resistance, can not break the seals easily
4.Hydraulic cylinder: Nodular cast iron, the material is QT-500, hardness 68~72 HS, using the annealing treatment, and choosing the best flaw detection process.
5.The heating plate :35# steel
6. Thermal baffle: Silicon 3 Calcium plate, not break the seals easy
7. Valve: Cartridge valve, not easy broken and no need maintain brand from Huade (China-Germany joint venture )
8.Hydraulic pump: Brand from YUCI YUKEN HYDRAULICS Co., LTD Japan brand
9. Low-voltage apparatus: The brand from Schneider or Siemens
|Total pressure (MN)||0.15||0.25||0.5||0.63||1.00||1.20|
|Unit area pressure of hot plate(Mpa)||2.60||2.04||3.13||2.52||2.77||2.45|
|Piston stroke (mm)||250||250||250||250||250||250|
|Main motor power (KW)||2.2||2.2||2.2||2.2||2.2||2.2|
|Size: L × W × H (mm)||1200×350×1300||1400×480×1380||1600×500×1480||1750×600×1540||1880×720×1680||2000×850×1750|
|Total pressure (MN)||1.60||2.00||3.15||5.60||7.50||10.00||18.00|
|Unit area pressure of hot plate(Mpa)||2.51||2.47||2.19||2.15||2.5||3.33||3|
|Piston stroke (mm)||400||400||400||400||400||400||400|
|Main motor power (KW)||3||5.5||3||8||9.5||11||26|
|Size: (L × W × H) (mm)||2250×1200×2200||1400×900
1. Superior Mixing Performance.
2. Low Operating Cost with High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. Auto reversing electric Panel.
9. Simple & easy maintenance.
Contact Person: LEE
