Product Details:
|
Clamping Force: | 160T | Heating Plate Size: | 600*600mm Or Customized |
---|---|---|---|
Unit Area Pressure: | 44.4kg/cm² | Plates Daylight: | 300mm |
Plunger Diameter: | φ360mm | Heating Method: | Electrical Heating, Total 12.6kw |
Plunger Material: | Chilled Cast Iron | Control Mode: | PLC Fully Automatic Control |
High Light: | Industrial Rubber Vulcanizing Press Machine,160T Rubber Vulcanizing Press Machine,Two Working Layer Rubber Vulcanizing Machine |

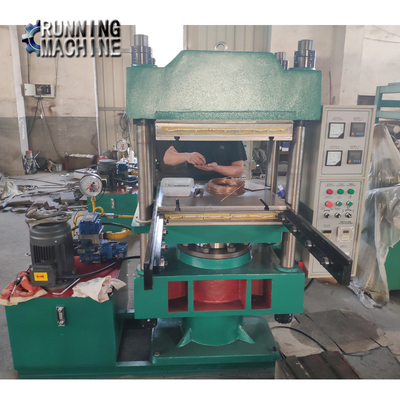

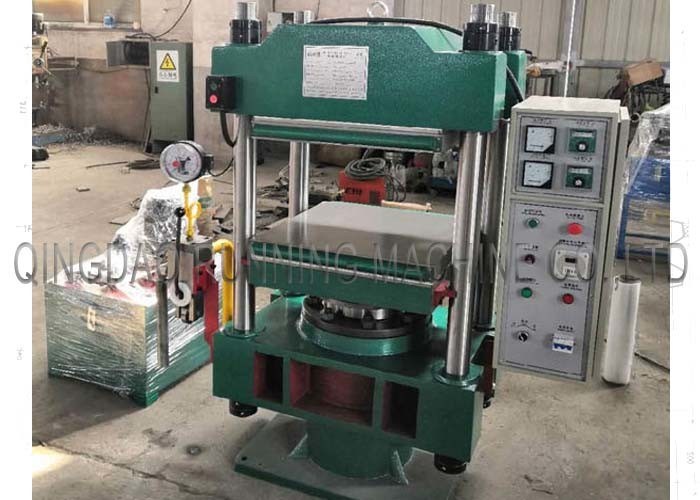

160T Two Working Layer Industrial Rubber Vulcanizing Press Machine
What is a vulcanizing press?
Application:
Rubber Hydraulic Vulcanizing Press Machine is used for vulcanizing various kinds of rubber and plastic mould products as well as non-mould products. Like rubber railway sleeper, rubber seals, O-ring, rubber gasket, Condenser seal, rubber-steel bonded products, rubber mats, rubber tiles, rubber conveyor belts, silicone rubber products and synthetic rubber products etc.
Brief introduction:
1) It has 4-columns structure and frame structure, as a below pressing type(upwards), the heating plate opens by the self-weight of the hot plate, platform and plunger.
2) The plate size, piston stroke and total pressure can be adjusted according to customers’ actual requirement, the machine can equip with manual-pull mold and automatic hydraulic-pull mold, which reduces labors’ working strength and inconvenience.
3) This machine has three kinds of control method: manually, semi-auto. and full auto.
4) Fast speed mould-closing, high production efficiency, low locking speed to protect mould.
5) Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance.
6) Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
7) The rubber vulcanizing press is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
Machine specifications:
Parameter | XLB350×350×2 | XLB400×400×2 | XLB600×600×2 | XLB600×600×1 |
Total Pressure (MN) | 25T | 50T | 100T | 160T |
Platen size (mm) | 350*350 | 400*400 | 600*600 | 600*600 |
Plate Distance (mm) | 125 | 125 | 125 | 300 |
Working Layer NO. | 2 | 2 | 2 | 1 |
Unit Area Pressure(Mpa) | 2.04 | 3.13 | 2.77 | 4.4 |
Plunger Stroke (mm) | 250 | 250 | 250 | 400 |
Heating Mode | Electric | Electric/Steam | Electric/Steam | Electric/Steam |
Motor Power (kw) | 2.2 | 2.2 | 2.2 | 3 |
Overall dimension: (L×W×H) (mm) | 1400×480×1380 | 1600×500×1480 | 1880×720×1680 | 2250×1200×2200 |
Main parts instruction for plate & vacuum rubber machine
NO. | Item | Branch/Material | Remarks |
1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
2 | Oil Pump | Japan branch | Collective style circuit design |
3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
8 | Other electrical configuration |
Japan Fujitsu, Great Wall, Chint and so on |
Performance and stability |
9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
11 | Heating control system |
Taiwan Solid State Relays |
temperature uniform distribution, the error value at ± 3 ºC |
12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
13 | Column | Carbon Steel | Hardness up to HRC55--58 |
14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |

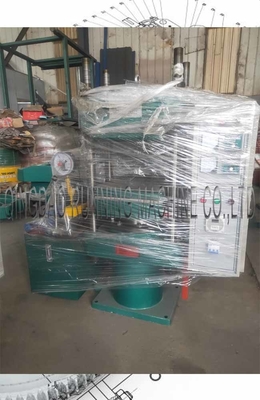

Our packaging:
