Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated
Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated

Large Image :  Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO9001 CE
Model Number: 1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Delivery Time: 10--15 days
Payment Terms: T/T, L/C
Supply Ability: 5000sets/year

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated

Description
Application: Cutting PVC Conveyor Belt Applied Belt Width: Max. 1200mm
Applied Belt Thickness: Less Than 4mm Operate Mode: Manual
Warranty: 1 Year Color: Silver
Condition: New Core Components: Blade
High Light:

Semi Automatic V Finger Cutting Machine

,

PVC Conveyor Belt Finger Cutting Machine

,

Manual V Finger Puncher

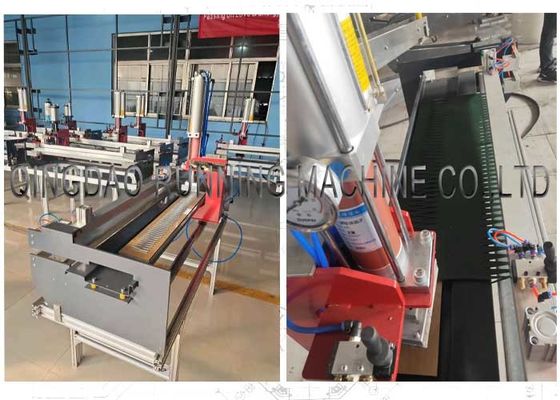

Easy Operated Semi-Automatic PVC Conveyor Belt V Finger Cutting Machine



Description:



This type finger puncher is semi-automatic and pneumatic.Suitable for prepping finger and finger-over-finger splices for PVC,PU and polyurethane belts.





Specifications:

  • The newest manual finger puncher, have different models width from 24″ (300 mm) to 60″ (1500 mm) (no width limited)
  • Used for PVC PU belt etc.
  • Light weight and portable design, very good choice for outdoor work use.
  • Both side, open design, no width limited
  • Easy change the blade accords to work, also different blade size can make accords to your requirements (20×50, 20×80, 10×80, 10×90 mm etc., also round and sharp blade is optional)
  • Single finger splice & double fingers splice

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 0



Application:



The PVC conveyor belt finger cutting machine is designed to effortlessly punch fingers into polyurethane and PVC conveyor belts in preparation for installing vulcanized splices. The tool is available in 4 standard widths: 300mm, 600mm,900mm and 1200mm .The open construction of the punch enables punching wider belts in multiple steps.

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 1

Advantages:


1.Easy operation                      One hand clamping bar

2.Flexible configurations          For all types of finger punching

3.Portable equipment               For on-site use

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 2



Easy operation:



To punch a belt , one belt end is positioned against the end stop and then clamped in place. Precise fingers are quickly punched with each lever pull.



Punch types:



Depending on the desired finger dimensions, RUNNING offers a variety of punch boards for the punch machine .Please note that punchboards are supplied separately .When ordering a new tool please state the desired punchboards.

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 3



Datasheet:



Model 300 600 900 1200 1500
Machine length 530mm 890mm 1120mm 1490mm 1750mm
Machine width 390mm 390mm 390mm 390mm 390mm
Machine Height 380mm 380mm 380mm 380mm 380mm
Weight 19kgs 27kgs 36kgs 41kgs 47kgs
Packing weight 35kgs 50kgs 65kgs 74kgs 80kgs
Packing Dimension(mm) 580x500x480 1010x500x480 1330x500x480 1500x510x480 1780x510x480





 Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 4



Our Workshop:

Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 5





Machine delivery:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.



Semi Automatic PVC Conveyor Belt V Finger Cutting Machine Easy Operated 6

On Site Splicing Hot Vulcanizing for conveyor belt


Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



FAQ

1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
