Product Details:
|
Application: | Splicing / Jointing Conveyor Belt | Belt Width: | 1200mm |
---|---|---|---|
Jonting Length: | 760mm | Heating Plate Size: | 1420*830mm |
Heating Method: | Electricity | Cooling Method: | Water Cooling |
High Light: | Rubber Conveyor Belt Vulcanizing Machine,Heating Plate Conveyor Belt Vulcanizing Machine,1200x830mm Conveyor Belt Joint Machine |

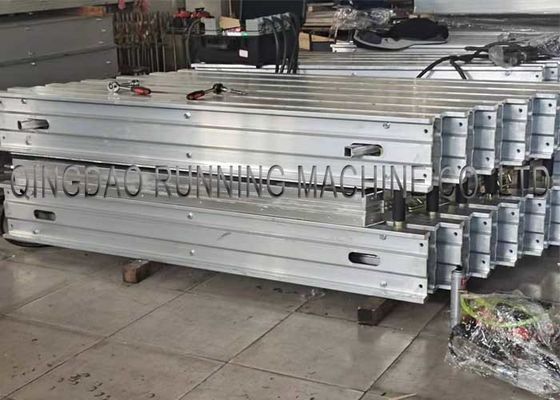

1200mm * 830mm Heating Platen Size Rubber Chevron Conveyor Belt Joint Vulcanizing Machine
Application:
With the continuous development of mining and other industries, conveyor belts are used more and more, and the conveyor belt will inevitably be damaged during use. At this time, it is necessary to use a conveyor belt joint vulcanizer to repair the conveyor belt to educe replacement costs.
Structure of Conveyor Belt Joint Vulcanizing Machine :
The Conveyor Belt Joint Vulcanizing Machine consist of Aluminum beam, bolts & nuts, heaitng plate, water cooling plate, electricity control box, water pump & pressurize water bladder.
Specifications of Conveyor Belt Joint Vulcanizing Machine:
Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Our conveyor belt joint vulcanizing machine use quick disconnnect wire terminal, easily connection. And there is buskles on the terminal to prevent lossening.
The pressurize water bladder of conveyor belt joint vulcanizing machine is made of rubber, it can withstand greater pressure without being damaged.
For shipping, there will be plywood case to protect the conveyor belt joint vulcanizing machine, the package is fumigation-free.
For more details please feel free to contact mike@running-machinery.com.
