Rubber Conveyor Belt Splicing Machine 1800mm Width
1 set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: RUNNING
Certification: CE,SGS
Model Number: ZLJ
High Light:

Rubber Conveyor Belt Splicing Machine


Conveyor Belt Splicing Machine 1800mm


Vulcanizing Conveyor Belt Joint Machine

Payment & Shipping Terms
Packaging Details: FCL/LCL
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000sets/year
Motor Power (Kw): Motor Power (Kw)
Voltage: 220/380/410/460
Heating: Electrical
Cooling Time(Min): In 15-30 Mins
Width: 800,1000,1200mm
Color: Silver
System: Water System
Market: Argentina,USA,Pakistan...
Condition: New
Warranty: 24 Months
Dimension(l*w*h): 1592x830x580 Mm
Material: Aluminum Alloy
Product Description

2021 New Rubber Conveyor Belt Splicing Machine 1800mm Width



Conveyor belt splicing is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt.


Because there are so many industries in which conveyor systems are employed, there are many types of conveyor belts and components. In order to correctly splice a belt, the type of belt, speed of conveyor belt system, materials traveling on the belt and conveyor belt environment must be taken into account. A conveyor belt splice is important in relation to the productivity of the belt. So the conveyor belt splicing press machine is the most important key.


There are two ways to splice conveyor belts: vulcanization and mechanical splicing. Vulcanization is mainly used to splice conveyor belts through heating or chemical treatment,The most common is to use a professional conveyor belt joint machine vulcanization head, this joint method is being adopted by various joint service companies all over the world.

Mechanical splicing uses metal hinges or plates to splice conveyor belts. How to choose vulcanization and mechanical splicing? Which method is better?

Before making a decision, it is important to understand the advantages and disadvantages of vulcanization and mechanical splicing.


Rubber Conveyor Belt Splicing Machine 1800mm Width 0On Site Splicing Hot Vulcanizing for conveyor belt


There are several different types of vulcanized splices, including finger splice, wedge splice, stepped splice and overlap splice. And two types of vulcanizing processes: hot vulcanization and cold vulcanization.

Hot vulcanization method

Hot vulcanization splices are heated and cured under pressure with a special vulcanizing press. And the belt can only be used after the splice has cooled down.Qingdao Running Machinery Co., Ltd. is a manufacturer specializing in the production of conveyor belt splicing machines. Our vulcanizers are equipped with a water cooling system, bid farewell to the traditional natural cooling. It takes about 15 minutes to rise from room temperature to about 145-150 degrees, and the vulcanization time 30-40 minutes, cooling from 145-150 degrees to about 70 degrees, it takes 10 minutes.

Hot vulcanization pays attention to the quality of the belt: the material of the conveyor belt, the formula, the thickness of the covering layer, the manufacturing process of the belt (temperature, time, pressure) and the performance of the processing equipment. Of course, good vulcanization also requires a team of professional workers and a good vulcanizing machine.

Qingdao Running Machine co., ltd 's conveyor belt splicing press machine NO NEED FOR a 8-11 hours to vulcanizing time.

For our jointing press machine, it takes about 15 minutes to rise from room temperature to about 145-150 degrees, and the vulcanization time is 30-40 minutes, and it takes 10 minutes to cool from 145-150 degrees to 70 degrees.


Skilled workers can assemble a piece of equipment in 5-10 minutes

Cold vulcanization method

Cold vulcanization does not use a press, but uses a bonding agent that causes a chemical reaction to splice the two belt ends together. Like hot vulcanization, this process takes several hours.

Good cold vulcanization focuses on the quality of the chemical adhesive (formulation, storage environment and expiration date), working conditions (temperature, dust-free) and the skills of the operator.

Advantages of vulcanization

Vulcanization improves the durability of the conveyor belt. The repaired belt can be used for a long time, thereby reducing the risk of repeated failures and equipment downtime.

The longevity of vulcanized splices is longer than that of mechanical splices.

Whether it is cold vulcanization or hot vulcanization, the conveyor belt needs to be disassembled when splicing.


Limitations of vulcanization

Whether it is cold vulcanization or hot vulcanization, the conveyor belt needs to be disassembled when splicing.

Not all conveyor belts can be vulcanized. Old, dirty and unevenly worn conveyor belts are not suitable for vulcanization.

Vulcanization requires clean, dry and relatively warm conditions to succeed.

Vulcanized splices wear from the inside out, so damage may not be obvious

On Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor belt

Rubber Conveyor Belt Splicing Machine 1800mm Width 4

Technical Parameters (Reference)

(Except for 830mm, 1000mm and other conventional sizes, any non-standard size is accepted.)

Model Belt width(mm) Power(kw) Dimensions Weight(kg) Single most important
(L*W*H mm)
ZLJ-650*830 650 9.5 1370*830*630 430 45
ZLJ-650*1000 10.8 1370*1000*630 500 66
ZLJ-800*830 800 11.2 1520*830*630 535 70
ZLJ-800*1000 13.5 1520*1000*630 575 79
ZLJ-1000*830 1000 14.1 1720*830*630 595 82
ZLJ-1000*1000 15.7 1720*1000*630 620 95
ZLJ-1200*830 1200 16.5 1920*830*710 800 96
ZLJ-1200*1000 17.2 1920*1000*710 870 113
ZLJ-1400*830 1400 18.6 1930*830*760 930 107
ZLJ-1400*1000 20.7 2120*1000*760 1180 132
ZLJ-1600*830 1600 21.5 2320*830*800 1270 120
ZLJ-1600*1000 22.3 2320*1000*800 1460 146
ZLJ-1800*830 1800 23.3 2520*830*850 1380 137
ZLJ-1800*1000 25.6 2520*1000*850 1650 164
ZLJ-2000*830 2000 27.2 2720*830*950 1760 154
ZLJ-2000*1000 30 2720*1000*950 1860 182
ZLJ-2200*830 2200 29.2 2920*830*950 1860 165
ZLJ-2200*1000 34.1 2920*1000*950 1970 198

On Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor beltRubber Conveyor Belt Splicing Machine 1800mm Width 8On Site Splicing Hot Vulcanizing for conveyor belt

Packaging & Shipping
Size 2 m (L) * 1.5 m (W) * 1m (D)
Weight 1.2 T

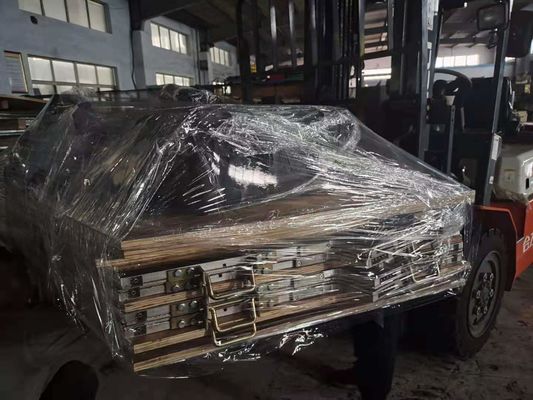

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.


Mechanical splicing

There are several types of mechanical fasteners, and each type of fastener can be used for different belt widths, lengths, thicknesses, speeds, tensions and cleaning agents.

Advantages of mechanical splicing

Regardless of the belt condition, mechanical splicing is a good choice for new and old belts.

Mechanical splicing does not need to consider the site environment, and mechanical fasteners can be used at any time to quickly splice.

The wear of mechanical splice is easy to check and can be replaced in time.

Mechanical splicing tools are light in weight and easy to carry on site.

Limitations of mechanical splicing

Mechanical fasteners will wear out over time, and it may pierce or tear the conveyor belt.

The longevity of the splice is shorter than that of the vulcanized splice.


When splicing belts, you can decide which conveyor belt splicing is more suitable according to the surrounding environment of the belt, working conditions, and the state of the conveyor belt. You can contact us for any conveyor belt questions.

On Site Splicing Hot Vulcanizing for conveyor belt

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
