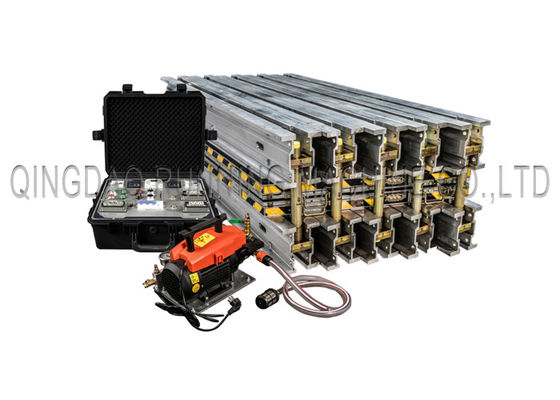

Large Image :  Vulcanizing Conveyor Belt Welding Machine For Cement Industry

Product Details:
Place of Origin: China
Brand Name: RUNNING
Certification: CE,SGS
Model Number: ZLJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: FCL/LCL
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000sets/year

Vulcanizing Conveyor Belt Welding Machine For Cement Industry

Description
Motor Power (Kw): Motor Power (Kw) Voltage: 220/380/410/460
Heating: Electrical Cooling Time(Min): In 15-30 Mins
Width: 800,1000,1200mm Color: Silver
System: Water System Market: Argentina,USA,Pakistan...
High Light:

Vulcanizing Conveyor Belt Welding Machine

,

Cement Industry Conveyor Belt Welding Machine

,

1000mm Conveyor Belt Splicing Equipment

2021 New Tech Conveyor Belt Splicing Tool Kits for Jointing Converyor Belt





Application
Conveyor Belt Joint Vulcanizing Equipment With Pressure Water Bladder is mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field.

Product Description

2021 New Tech Conveyor Belt Splicing Tool Kits for Jointing Converyor Belt

Portable type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.

On Site Splicing Hot Vulcanizing for conveyor belt

Advantage features:

1. Machine maximum size: from 650MM-2400MM;
2. Voltage: 380V 660V 480V 440V 415V 400V or 220V;
3. Fast cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 50 minutes

6. Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;

On Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor belt

Vulcanizing Conveyor Belt Welding Machine For Cement Industry 3

Technical Parameters (Reference)

(Except for 830mm, 1000mm and other conventional sizes, any non-standard size is accepted.)

Model Belt width(mm) Power(kw) Dimensions Weight(kg) Single most important
(L*W*H mm)
ZLJ-650*830 650 9.5 1370*830*630 430 45
ZLJ-650*1000 10.8 1370*1000*630 500 66
ZLJ-800*830 800 11.2 1520*830*630 535 70
ZLJ-800*1000 13.5 1520*1000*630 575 79
ZLJ-1000*830 1000 14.1 1720*830*630 595 82
ZLJ-1000*1000 15.7 1720*1000*630 620 95
ZLJ-1200*830 1200 16.5 1920*830*710 800 96
ZLJ-1200*1000 17.2 1920*1000*710 870 113
ZLJ-1400*830 1400 18.6 1930*830*760 930 107
ZLJ-1400*1000 20.7 2120*1000*760 1180 132
ZLJ-1600*830 1600 21.5 2320*830*800 1270 120
ZLJ-1600*1000 22.3 2320*1000*800 1460 146
ZLJ-1800*830 1800 23.3 2520*830*850 1380 137
ZLJ-1800*1000 25.6 2520*1000*850 1650 164
ZLJ-2000*830 2000 27.2 2720*830*950 1760 154
ZLJ-2000*1000 30 2720*1000*950 1860 182
ZLJ-2200*830 2200 29.2 2920*830*950 1860 165
ZLJ-2200*1000 34.1 2920*1000*950 1970 198

On Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor beltOn Site Splicing Hot Vulcanizing for conveyor beltVulcanizing Conveyor Belt Welding Machine For Cement Industry 7On Site Splicing Hot Vulcanizing for conveyor belt

Packaging & Shipping
Packaging
Size 2 m (L) * 1.5 m (W) * 1m (D)
Weight 1.2 T







Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.

On Site Splicing Hot Vulcanizing for conveyor belt

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



FAQ

1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
