3000r/Min Heating Plate Cleaning Machine,
6.5KW Heating Plate Cleaning Machine,
1.7m/Min Heating Plate Cleaning Machine

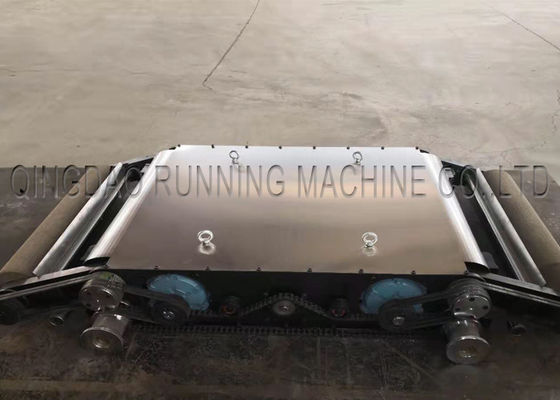

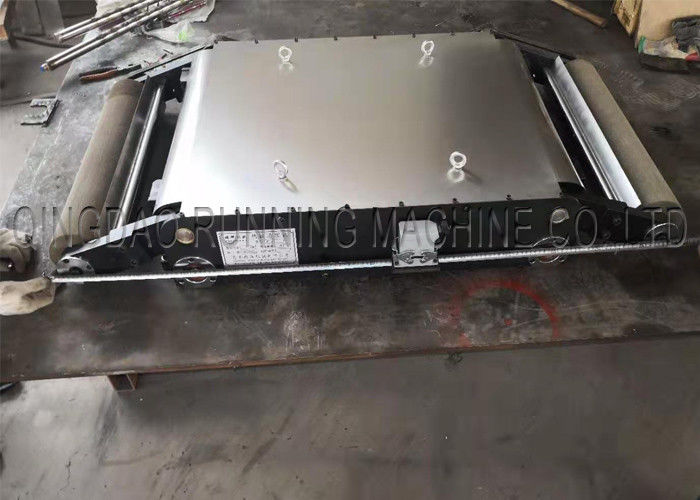

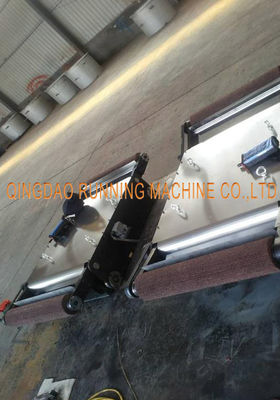

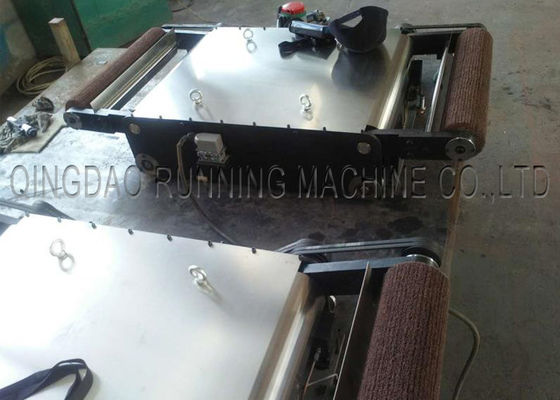

Converyor Belt Hot Plate Cleaning Machine/ Heating Plate Cleaning Machine
1. Function and characteristic
In order to improve the quality of the product, and meet the production demand, On the basis of absorbing the advanced experience of foreign countries and through long-term practice, our company developed a domestic industry's most advanced cleaning machine. Adopting imported cleaning brush material and foreign advanced cleaning technology, the cleaning brushes’ length increase to 600mm to improve work efficiency. The cleaning brushes’s lifting is controled by hydraulic control which can keep the pressure between the brush and platen constant. The cleaning machine with stainless steel fender can automatic uniform velocity movnig in in a straight line, can can cleaning the up heating platen and the down heating platen. Cleaning ability is high and will not damage the heating platen. The machine adopts remote monitoring control to ensure the operater’s safety. The old disc type abrasive cloth cleaning machine wastes time and energy and makes the platen sags and crests, this cleaning machine can overcome these shortcomings. This machine can both remov debris and maintainplaten. Brushes rotate and machine parallel move, This action can clean anf polish the platen. After cleaning, the platen is smooth and the degree of finish is high, that increase production efficiency and quality. The cover and fender are stainless steel, rocker arm is heat treatment steel.
2. Structure and technical parameter
This machine consists of frame, hydraulic section, moving section, brush driving section, electric control section etc.
1.1 Hydraulic sectione contains of hydraulic station, valve control system, pipe, brush up&down cylinders, machine up&down cylinders etc.

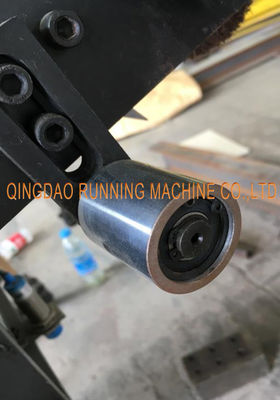

1.2 Moving section contains of adjustable-speed motor, speed controller, chain wheel, tension wheel, moving wheel etc.
1.3 Brush driving section contains of motor, belt, belt wheel,belt tension wheel, brush fixed shaft.
1.4 Electrical system contains of convenience receptacle, contractor, intermediate relay, remote control receiving system, remote control handle etc.
3. Technical parameter
|Voltage||AC, 3-380V (Three-Phase|
|Brush lifting height||0-350(mm)|
|Brush rotate speed||3000r/min|
|Control method||Remote control handle|
4. Lubrication and Maintenance
1. Bearing which on both ends of the brush fixed shaft should be checked regularly. Oil in 3# lithium lubricating grease(Running 50 hours).
2. Brush motor bearing should be checked regularly. Oil in 3# lithium lubricating grease(Running 100 hours).
3. Bearing which on both ends of the moving wheels should be checked regularly. Oil in 3# lithium lubricating grease(Running 500 hours).
4. Hydraulic system should be checked regularly. Oil in 46# hydraulic oil.
