140° Tilting Angle 75kw 55L Rubber Kneader Machine

Customer Reviews
The delivery was fast, thanks to Lily's timely feedback of pictures and videos during the production process. The vulcanizer looks very stable and the details are well handled. You can use it directly after receiving it. The cowshed mat made is very good and the surface is smooth. Many thanks.

—— Ulugbek

The press machine looks really beautiful, I look forward to buying another one. Thank you.

—— Darin R.

I'm Online Chat Now

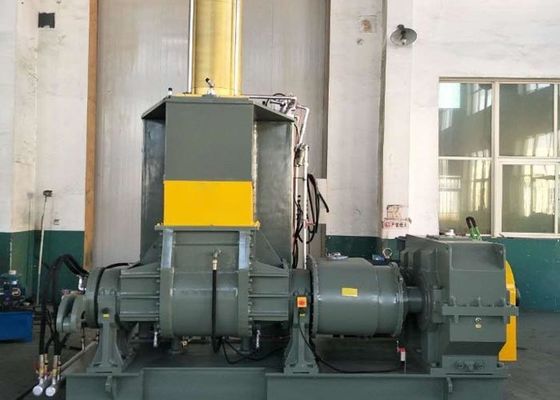

140° Tilting Angle 75kw 55L Rubber Kneader Machine

140° Tilting Angle 75kw 55L Rubber Kneader Machine
140° Tilting Angle 75kw 55L Rubber Kneader Machine 140° Tilting Angle 75kw 55L Rubber Kneader Machine 140° Tilting Angle 75kw 55L Rubber Kneader Machine 140° Tilting Angle 75kw 55L Rubber Kneader Machine

Large Image :  140° Tilting Angle 75kw 55L Rubber Kneader Machine

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: X(S)N-55
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: strench film by FCL
Delivery Time: 31~40days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

140° Tilting Angle 75kw 55L Rubber Kneader Machine

Description
Type: Rubber Kneader Usage: Kneading Rubber & Annexing Agent
Voltage: 380V, 440V Or Customized Tilting Angle: 140°
Capacity: 55L Driving Motor Power: 75kw
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

55L Rubber Kneader Machine

,

75kw Rubber Kneader Machine

55L Capacity Rubber Compound Mixing Kneader Machine with Rotor Water Cooling System



 Application



The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.



Product Description



The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models:



Technical parameters:



Model X(S)N-10X32 X(S)N-20X32 X(S)N-35X30 X(S)N-55X30 X(S)N-75X30 X(S)N-110x30 X(S)N-150x30

Total volume of

mixing chamber

25L 45L 75L 125L 180L 250L 325L

Working volume of

mixing chamber

10L 20L 35L 55L 75L 110L 150L
Driving motor power 15KW 30KW 55KW 75KW 110KW 185KW 220KW
Tilting motor power 1.1KW 1.5KW 2.2KW 2.2KW 4KW 4KW 5.5KW
Tilting angle 140° 140° 140° 140° 140° 140° 140°

Rotational speed of

the rotor (front/rear)

32/23.5

r/min

32/25

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

Pressure of

compressed air

0.5-0.8MPa 0.5-0.8MPa 0.5-0.8MPa 0.6-0.8MPa 0.6-08MPa 0.6-0.8MPa 0.6-0.8MPa

Capacity of

compressed air

≥0.5m³/min ≥0.7m³/min ≥0.9m³/min ≥1.0m³/min ≥1.0m³/min ≥1.5m³/min ≥2.0m³/min

Pressure of

cooling water

0.2-0.4MPa 0.2-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa

Pressure of heating

steam (plastic mixing)

0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa
Overall dimension

2580X1300

X2280mm

2630X1520

X2550mm

3200X1900

X2950mm

3280X1930

X3070mm

3330X2620

X3340mm

3930X3000

X3660mm

4200X3300

X3900mm

Weight 3300Kg 4500Kg 6500Kg 7800Kg 10500Kg 14500Kg 19500Kg



Product display



Banbury Intensive Kneader/Mixer/mixing machine



Packaging & Shipping



140° Tilting Angle 75kw 55L Rubber Kneader Machine 1
