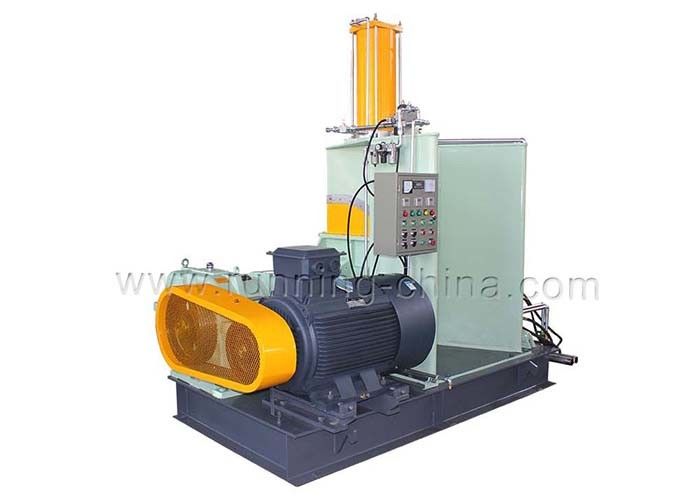

75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control

75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control
75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control
75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control 75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control

Large Image :  75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: CE ISO9001
Model Number: NH-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100sets/month

75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control

Description
Total Capacity(L): 75 Litre Rotation Speed: 30/16 Rpm
Motor: 30-110kw Vacuum: -0.094Mpa
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear Name: Rubber Kneader Machine
High Light:

75 Litre Rubber Kneader Machine

,

PLC Control Rubber Kneader Machine

,

75 Litre Dispersion Kneader

75 Litre Rubber Kneader Machine Dispersion Kneader PLC Control



basic introduction


Our dispersion kneader can provide the mass production for your process.

Outstanding mixing performance assures the best dispersability and uniformity. Extremely stable processing.



Technical Parameter:



Parameter/model X(S)N-20 X(S)N-35 X(S)N-55 X(S)N-75 X(S)N-110
Total volume (L) 45 80 125 175 250
Working volume (L) 20 35 55 75 110
Motor power (KW) 37 55 75 110 185
Tilting motor power (KW) 1.5 2.2 2.2 4 7.5
Tilting angle (°) 140 140 140 140 140
Rotor speed (r/min) 32/26.5 32/24.5 32/26 32/26 30/24.5
Pressure of compressed air (MPa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Capacity of compressed air (m3/min) ≥0.7 ≥0.9 ≥1.0 ≥1.3 ≥1.6
Pressure of cooling water (MPa) 0.2-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4

Configuration

Mixing room:

It consists of a "W"-shaped main body and two side plates. The two side plates are made of high-quality steel plates through extrusion molding and welding, and are raised to absorb the flow of cooling water or steam. Its inner wall is plated with hard chrome.

Thermal resistance:

There is a plug-in thermal resistance in the middle part of the bottom of the chamber, which can be connected to the electrical system to check and display the temperature.

Rotor:

Specially designed for Banbury hollow blades. The cavity is connected to the axial hole of the rotor shaft used as a cooling or heating channel. The top edge of the blade and the end face of the rotor shaft are surface welded with cobalt-based cemented carbide, then polished, then plated with hard chrome and polished.

Cooling/heating system:

In the mixing operation, the general piping system is used to cool or heat the material. Through this system, cooling water or steam is fed to the cavity of the rotor blade in three ways, the mixing cavity and the ejector pin.

Tilt mechanism:

It consists of a rotor with brake, cycloid gear reducer, TP type worm and worm gear. It can drive the mixing chamber to tilt 140° around the front rotor.

Dustproof device:

At the junction between the top of the mixing chamber and the cantilever of the frame, a dustproof component with a curved slotted part is used to achieve an excellent and reliable sealing purpose.
The end face of the rotor is sealed through the end face contact seal without oil lubrication, and has good sealing performance, wear resistance and durability.
