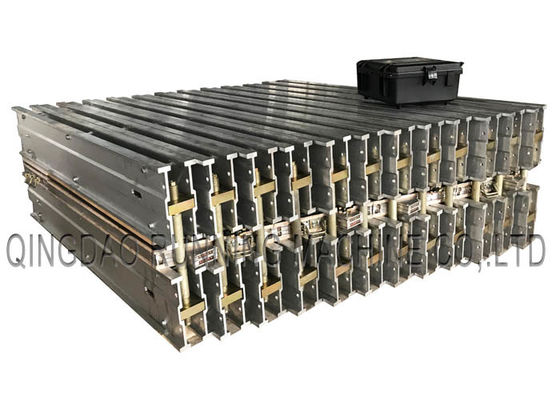

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating
Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating

Large Image :  Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: ZLJ-2200*2000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood case (Fumigation-free)
Delivery Time: 7~10days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating

Description
Application: Conveyor Belt Splicing / Jointing Max. Jointing Width: 2200mm
Voltage: 220V 380V 660V 1140V Pressure: Up To 2MPa
Temperature: Room Temp. To 200℃ Heating Method: Electricity Heating
High Light:

conveyor belt joint press

,

conveyor belt splicing equipment

,

conveyor belt splicing machine

Large size 2200mm Conveyor Belt Jointing Machine with Split Design for Easy to Carry



Brief introduction:



Conveyor Belt Jointing Machine is used for jointing or repairing conveyor belt. It consist of Frame, heating plate, pressure water bladders, control box etc. It is mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field.

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating 0



Machine specification:



Model Applied Width(mm) Motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860



Machine introduction:



For easy to install and disassembly, the heating plates is separated into 5 parts.

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating 1



There are 5 pressure water bladders for pressurize.

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating 2

Every heating plate has one appropriative control box.

Large Size 2200mm Conveyor Belt Splicing Equipment Electricity Heating 3



WE CAN MAKE AND DESIGN NON-STANDARD SIZE MACHINES AS YOUR REQUIREMENT!

WELCOME INQUIRY!
