|Application:||Curing Vulcanizing Inner Tube||Heat Plate Diameter:||760mm|
|Applied Tube Diameter:||Less Than 28"||Motor Power:||5.5kw|
|Suitable For:||Natural Rubber Or Butyl Inner Tube|
ISO Inner Tube Tire Curing Machine,
Hydraulic Tyre Curing Press Machine,
5.5kw Tire Curing Machine
This Inner tube curing vulcanizing machine is mainly used for making inner tubes, both natural rubber or butyl inner tubes can be made by this machine.
This inner tube curing vulcanizing machine can make bicycle inner tube, motorcycle inner tube, electrombile inner tube etc. The inner tube size should be less than 28". Of course there is other models can be used for making different size inner tubes, also truck inner tube or engineering truck inner tubes.

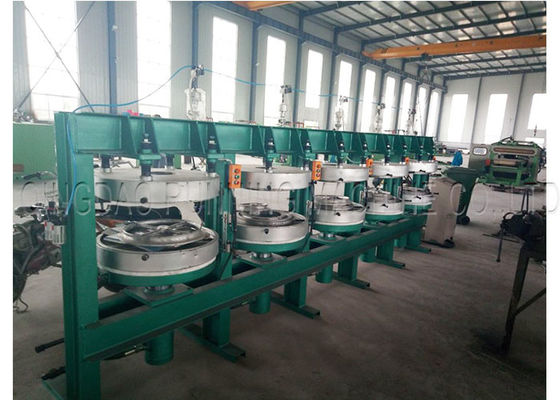

LLN-25/2 two-day-light hydraulic tube curing press is according to the technic characteristics of inner tube curing, takes hydraulic plunger vertically for the lower, hot plate, a hydraulic station can control six double inner tube curing machine. In order to increasing the clamping force, getting stable and reliable machine operation with low noise, its electrical parts adopts two ways of manual and linkage, equipped with PLC control system, thus ensuring simple, and reliable operation.
|Vulcanized inner tire specification||28’’ below|
|Maximum clamping force||25T|
|Plate type hot plate outer diameter||Φ800mm|
|Boiler type hot plate inner diameter||Φ750mm|
|Height of applicable mold||70-120mm|
|Hot plate steam pressure||0.8Mpa|
|Tire tube curing inner pressure||0.8-1.0Mpa|
