Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled

Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled
Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled

Large Image :  Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: CE, ISO9001
Model Number: LLN-800
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: $10,000-$11,000
Packaging Details: FCL
Delivery Time: 15days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month

Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled

Description
Application: Inner Tube Vulcanizing Type: LLN-800
Total Pressure: 120KN Plunger Diameter: 140mm
High Pressure: 10Mpa Low Pressure: 1.8Mpa
Steam Working Pressure: 0.7-1.0Mpa Control Mode: PLC Fully Automatic
High Light:

Inner Tube Hydraulic Vulcanizing Machine

,

Bicycle Tube Hydraulic Vulcanizing Machine

,

PLC Automatic Tire Curing Machine

Bicycle Inner Tube Hydraulic Vulcanizing Machine , Curing Machine



Application:



For various bicycle, motorcycle tube curing, except man operated tube operating and removal, the entitle curing process is automatically controlled.

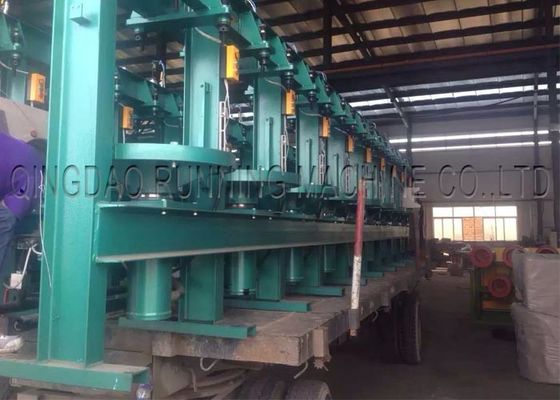

Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 0

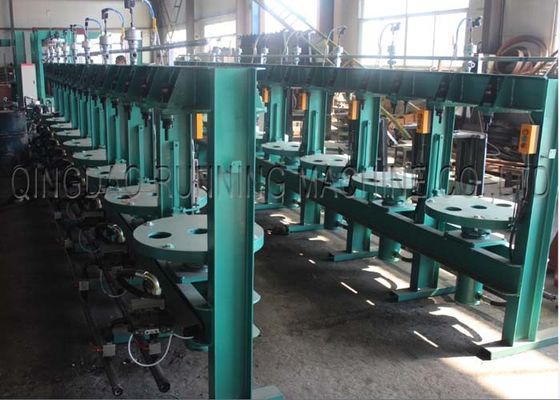

Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 1



Machine Specification:



Model LLY-800
Total pressure 120KN
Plunger diameter 140mm
High pressure 10Mpa
Low pressure 1.8Mpa
Steam working pressure 0.7-1.0Mpa
Motor power 3kw
Control mode PLC fully automatic
Overall size 6500*1100*1800mm



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 2



Structure feature:



One-layer hydraulic tube curing press is according to the technics characteristics of inner tube curing, working plate uses hydraulic plunger vertically from the lower, a hydraulic station can control six machines. Closing and locking mold force increase, machine working is stable and with low noise, its electrical parts adopts two way of manual and linkage, equipped with PLC control system, thus ensuring simple and reliable operation.



Inner tube curing machine at customer factory:



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 3



Other related machines:



Inner tube transport trolley:



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 4



Inner tube extursion cooling line:



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 5



Rubber Kneader



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 6



Rubber Mixing Mill



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 7



Rubber Hot Feed Extruder



Bicycle Inner Tube Hydraulic Vulcanizing Machine PLC Automatic Controlled 8
