Product Details:
|
Motor Power: | 2.2KW | Working Width: | 80-160mm |
---|---|---|---|
Warranty: | 5years | Voltage: | 220-380V |
Model No.: | NJQ-120-200 | Working Pressure: | 0.6-0.8Pa |
High Light: | inner tube joint machine,inner tube machine |

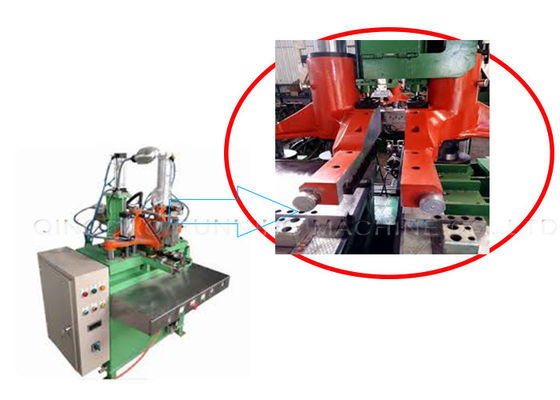

Hydraulic Inner Tube Jointing Machine
Used for:
tube joint of bicycle inner tube, electric inner tube, and motorcycle inner tube.
Type | NJQ-120 | NJY-160 | NJY-200H |
Right to connect the width(mm) | 50-120 | 100-160mm | 65-200 |
Double layer place levelly the thickness(mm) | 1.6-6 | 1.8-8 | 2-8 |
Biggest to clip the hold dint(KN) | 2.2 | 7.8 | 7.8 |
Biggest right connect the dint(KN) | 12 | 40 | 55 |
Input the electric voltage(V) | 220 | 380 | 380 |
The work spitit(liquid)presses(Mpa) | 0.6-0.8 | 4.0-6.0 | 4.0-6.0 |
Minmum type week long(mm) | 480 | 600 | 800 |
Single machine weight(kg) | 780 | 2000 | 2300 |
Shape size(L*W*H)(mm) | 900*730*1700 | 1235*950*1900 | 1270*1110*1900 |
