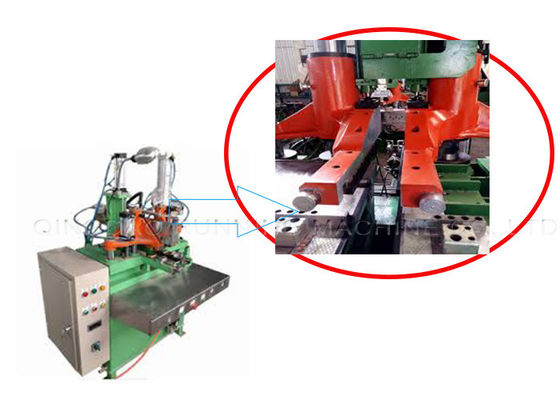

Inner Tube Splicing Machine for Rubber

Inner Tube Splicing Machine for Rubber
Inner Tube Splicing Machine for Rubber

Large Image :  Inner Tube Splicing Machine for Rubber

Product Details:
Place of Origin: CHINA
Brand Name: RUNNING
Certification: CE,SGS
Model Number: RNJ-160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: woodcase
Delivery Time: 14DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50SETS/M

Inner Tube Splicing Machine for Rubber

Motor Power: 2.2KW Working Width: 80-160mm
Warranty: 5years Voltage: 220-380V
Model No.: NJQ-120-200 Working Pressure: 0.6-0.8Pa
High Light:

inner tube joint machine


inner tube machine


Rubber Inner Tube Splicing Machine

Hydraulic Inner Tube Jointing Machine


Used for:


tube joint of bicycle inner tube, electric inner tube, and motorcycle inner tube.

Inner tube jointing machine adopts the most advancd hydraulic control systems and PLC (progress control). Main drive part is equipped with linear motion bearings, improving reciprocating movement accuracy. Horizontal cutting, electric knife heating, big range of temperature adjustment. Joint module adopts rubber connect mould, applicable to various ruber compound joint, with high accuracy and stable quality.

Inner Tube Splicing Machine for Rubber 0Inner Tube Splicing Machine for Rubber 1Inner Tube Splicing Machine for Rubber 2


Main parameter(special parameter can be designed according to customers' requirements)

Type NJQ-120 NJY-160 NJY-200H
Right to connect the width(mm) 50-120 100-160mm 65-200
Double layer place levelly the thickness(mm) 1.6-6 1.8-8 2-8
Biggest to clip the hold dint(KN) 2.2 7.8 7.8
Biggest right connect the dint(KN) 12 40 55
Input the electric voltage(V) 220 380 380
The work spitit(liquid)presses(Mpa) 0.6-0.8 4.0-6.0 4.0-6.0
Minmum type week long(mm) 480 600 800
Single machine weight(kg) 780 2000 2300
Shape size(L*W*H)(mm) 900*730*1700 1235*950*1900 1270*1110*1900
