Product Details:
|
| Type: | Single Screw Type | Warranty: | 1 Year |
|---|---|---|---|
| Model: | Customized | Voltage: | 110V-480V 50/60HZ |
| Power: | 15-200kw | ||
| Highlight: | Vacuum EPDM Rubber Extrusion Equipment,Single Screw Rubber Extrusion Equipment,EPDM single screw rubber extruder |
||

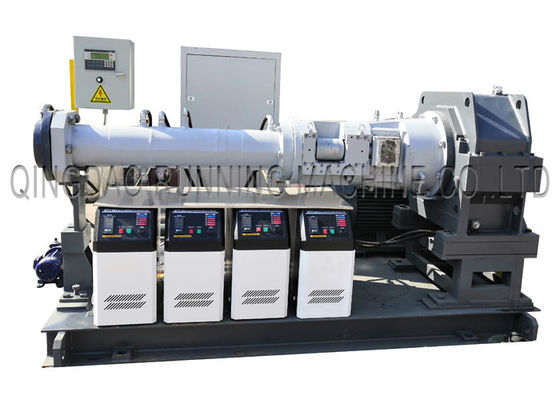

Vacuum Type EPDM Rubber Extrusion Equipment Single Screw Type
Application:
Rubber Extrusion Equipment is used in Granulation of Polymer,Color Masterbatch, EVA, rubber and plastic chemical raw materials.
Divided by specification
Building curtain wall vulcanized rubber seal(gasket)
Plastic profile casement seal
Aluminum alloy energy-saving doors and windows seal
Wooden doors and windows seal
Building deformation joint rubber seal Industrial door seal
Divided by material
EPDM rubber sealing strip(EPDM.EPDM-S)-current development trends
Thermoplastic sealing strip(Santoprene)
Silicone rubber sealing strip(Silicone)
Neoprene sealing strip(Neoprene)
Specification:
Our production line has the model:
| Item | Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3 M high-temperature forming machine | 1 |
| 3. 8.9 m 12KW microwave vulcanization oven | 1 |
| 4. 8.9 M Hot air vulcanization oven | 2 |
| 5. 4 m Cooling water tank with drying | 1 |
| 6. Traction machine | 1 |
| 7. 16 P Chiller | 1 |
| 8. PLC control | 1 |
Various types of basic parameters:
| Item |
Diameter of screw (mm) |
L/D ratio |
Speed of screw (r/min) |
Driving power (KW) |
Max output of production (kg/h) |
Weight (kg) |
|
150mm 20D (vacuum) |
150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
|
120mm 20D (vacuum) |
120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
|
90mm 20D (vacuum) |
90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
|
75mm 20D (vacuum) |
75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
