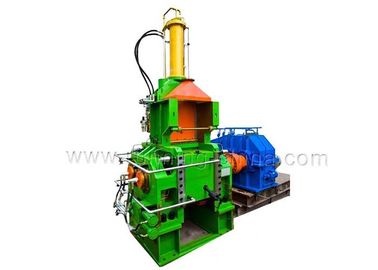

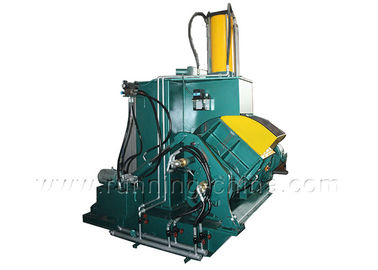

75kw 55L 380V Mixing Compound Rubber Kneader Machine

75kw 55L 380V Mixing Compound Rubber Kneader Machine
75kw 55L 380V Mixing Compound Rubber Kneader Machine 75kw 55L 380V Mixing Compound Rubber Kneader Machine

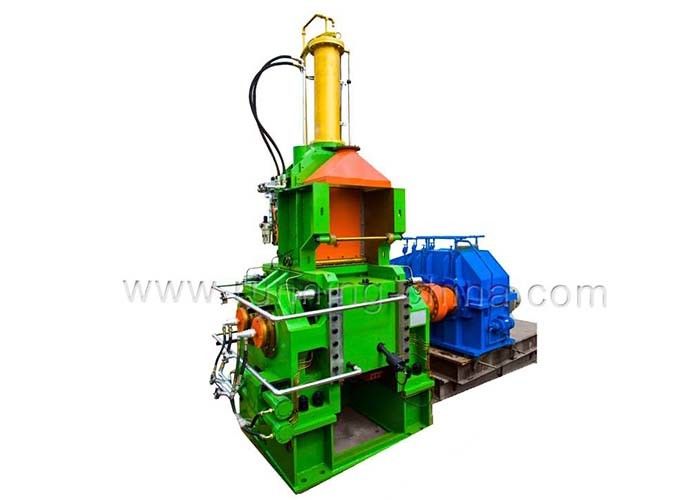

Large Image :  75kw 55L 380V Mixing Compound Rubber Kneader Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: X(S)N-55L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Strench film by FCL
Delivery Time: 31days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

75kw 55L 380V Mixing Compound Rubber Kneader Machine

Description
Type: Rubber Mixer Application: Mixing Rubber Compound
Mixing Capacity: 55L Driving Motor: 75kw
Tilting Motor Power: 5.5kw Rotor Rotational Speed: 36/30
High Light:

Compound Rubber Kneader Machine

,

75kw Rubber Dispersion Mixer

,

55L Rubber Dispersion Mixer

380V manufacturing plant rubber kneader



Description of rubber kneader

This series of rubber kneader is a type of dispersive kneader, consisting of P's nematic control system, main drive system, dUss sealing device, thermistor, rotor and cooling/heating system. You can choose the appropriate model according to your needs.





Specifications:



Model

X(S)N-10X32

X(S)N-20X32

X(S)N-35X30

X(S)N-55X30

X(S)N-75X30

X(S)N-110x30

X(S)N-150x30

Total volume of

mixing chamber

25L

45L

75L

125L

180L

250L

325L

Working volume of

mixing chamber

10L

20L

35L

55L

75L

110L

150L

Driving motor power

15KW

30KW

55KW

75KW

110KW

185KW

220KW

Tilting motor power

1.1KW

1.5KW

2.2KW

2.2KW

4KW

4KW

5.5KW

Tilting angle

140°

140°

140°

140°

140°

140°

140°

Rotational speed of

the rotor (front/rear)

32/23.5

r/min

32/25

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

Pressure of

compressed air

0.5-0.8MPa

0.5-0.8MPa

0.5-0.8MPa

0.6-0.8MPa

0.6-08MPa

0.6-0.8MPa

0.6-0.8MPa

Capacity of

compressed air

≥0.5m³/min

≥0.7m³/min

≥0.9m³/min

≥1.0m³/min

≥1.0m³/min

≥1.5m³/min

≥2.0m³/min

Pressure of

cooling water

0.2-0.4MPa

0.2-0.4MPa

0.3-0.4MPa

0.3-0.4MPa

0.3-0.4MPa

0.3-0.4MPa

0.3-0.4MPa

Pressure of heating

steam (plastic mixing)

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

Overall dimension

2580X1300

X2280mm

2630X1520

X2550mm

3200X1900

X2950mm

3280X1930

X3070mm

3330X2620

X3340mm

3930X3000

X3660mm

4200X3300

X3900mm

Weight

3300Kg

4500Kg

6500Kg

7800Kg

10500Kg

14500Kg

19500Kg



Application

This series of rubber kneaders are mainly used for mixing molding and mixing of natural rubber, synthetic rubber, recycled rubber or plastic or rubber and plastic. They are also suitable for mixing various low viscosity materials.



Features of Rubber Kneader

1. The pneumatic control system of the rubber kneader is controlled by PLC instructions. The bidirectional cylinder raises or lowers the plunger to prevent overload in the mixing chamber. If necessary, the top plunger can be raised automatically or manually to prevent the motor from overloading.

2. The tilt mechanism is composed of a brake motor, a cycloid reducer, a TP type worm and a worm wheel. It can drive the mixing chamber to tilt 140 degrees around the front rotor

3. The top of the rotor shaft and the corners of the wing are welded with wear-resistant alloys. The surface of the rotor shaft, mixing chamber, upper rammer surface and other surfaces connected to the material are hardened or polished, and plated with hard chromium, or welded with wear-resistant alloys, so the rubber kneader has wear resistance and corrosion resistance

4. The rotor shaft of the rubber kneader is an integral rotor wing body, welded on the drilled shaft, which improves the strength and rigidity of the rotor. The inner wing cavity of the rotor can be filled with cooling water or heating steam

5. The mixing chamber is a jacketed hollow structure. The upper gate is hollow to increase cooling or heating area and temperature control effect

6. The main drive system is composed of the main motor, reducer, gearbox connected at odd speed, and the rotor rotates face to face

7. The electrical control system adopts imported PLC device. All electronic components are imported or imported technology products to improve the reliability of the system.
