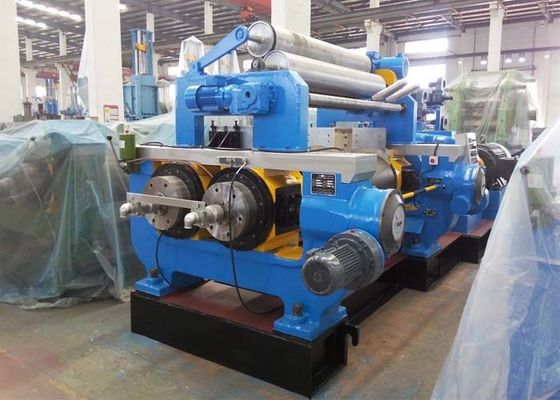

Hollow Type compound 380V Rubber Mixing Mill Machine

Hollow Type compound 380V Rubber Mixing Mill Machine
Hollow Type compound 380V Rubber Mixing Mill Machine
Hollow Type compound 380V Rubber Mixing Mill Machine Hollow Type compound 380V Rubber Mixing Mill Machine Hollow Type compound 380V Rubber Mixing Mill Machine Hollow Type compound 380V Rubber Mixing Mill Machine Hollow Type compound 380V Rubber Mixing Mill Machine

Large Image :  Hollow Type compound 380V Rubber Mixing Mill Machine

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: XK-560
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: strench film by FCL
Delivery Time: 51~60days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10sets/month

Hollow Type compound 380V Rubber Mixing Mill Machine

Description
Application: Mixing Rubber Compound Voltage: 380V 50HZ Or Customized
Roller Gap Adjustment: Synchronous Motor Roller Material: Chilled Cast Iron / Cast Steel
Roller Type: Hollow Type / Drilling Roll
High Light:

380V Rubber Mixing Mill Machine

,

Two Roller Rubber Compound Mixer

China Rubber Mixing Mill Machine Two Roller Rubber Compound Mixer



Product Description



Model: XK-560

Two roll mixing mills are equipped with a specially designed hydraulic stock blender to assist the operator in mixing the rubber material and chemical powder. It reduces the labor indulgence, provides safer working conditions, lowering the material temperature and speeding the mixing rate of the compounds.

The speed of the stock blender can be changed as per requirement irrespective of the roll rpm



  Item XK-160 XK-250 XK-360 XK-400 XK-450 XK-550 XK-560 XK-660 XK-710
Roll diameter mm 160 250 360 400 450 550 560-510 660 710
Roll working length   320 620 900 1000 1200 1500 1530 2130 2200
Front roll linear speed r/min 9 16.3 16.7 19.3 21.8 22.5 27.2 28 31.9
Speed ratio of rolls   01: 01.4 01: 01.1 01: 01.3 01: 01.3 01: 01.3 01: 01.2 01: 01.2 01: 01.2 01: 01.5
Max roll space mm 4.5 8 10 10 12 16 15 0.5-15 0.5-15
Compound feeding capacity kg 1-2 10-15 20-25 18-35 50 50-65 50-65 165 190
Motor power kW 5.5 18.5 30 45 55 110 90 240 280
Dimensions(L× W× H)
L mm 1133 2722 4200 4920 5405 6646 6270 7280 8185
W mm 920 1115 1780 1780 1740 2736 2282 3400 3910
H mm 1394 1345 1760 1800 1790 2105 2000 2530 2270
Gross weight T ~2 ~3.2 ~6.5 ~8 ~11.4 ~22 ~22.5 ~49 ~51



Should you buy a Stock Blender for your Open Mill?



The Stock Blender is an add-on accessory mounted on top of an open two roll mill. It aids in rubber blending by pulling the mix compound from the front roll of the mill and guiding it to the nip gap between the two mill rolls.

Hollow Type compound 380V Rubber Mixing Mill Machine 0

A stock blender helps in homogeneous mixing and repeatability of the mixing operations. Many companies use them on the Open mill (also known as dump mill) below the internal mixer. After masterbatch mixed in an internal mixer, curatives are added and final homogenization done on these mills. Because the mill helps incorporate undispersed curative or fillers that might have fallen off the ram or drop-door when the batch was dropped.

Hollow Type compound 380V Rubber Mixing Mill Machine 1

In a different scenario, if you need to drop the mix batch at a higher dump temperature, you could use the stock blender to take some heat out of the batch and then add the curatives on the mill. Reduction in temperature is obtained by allowing the batch from the mill roll airborne to pass over the water-cooled blender roll before it returns back to the nip gap. When these mill rolls (centrally cored or peripherally drilled design) are properly cooled, the stock-blender allows you to reduce the batch’s temperature continuously for lower viscosity compounds.



Packaging:



Hollow Type compound 380V Rubber Mixing Mill Machine 2
