Product Details:
|
Model: | XK-250 | Capacity: | 10-15kg Per Batch |
---|---|---|---|
Roller Diameter: | 250mm | Roller Working Length: | 620mm |
Max. Roller Gap: | 8mm | Driving Motor: | 18.5kw |
Highlight: | 10 Inch Rubber Mixing Machine,18.5kw Rubber Mixing Machine |

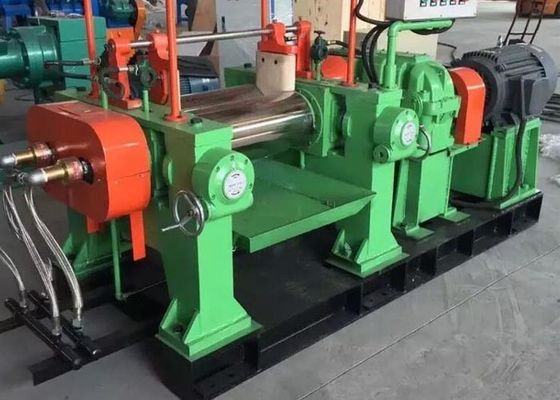

10 Inch Open Mixing Mill Water Cooling Type Rubber Mixing Machine
The Rubber mixing mill machine is a necessary euqipment used in rubber factory, mainly used for mixing rubber compound and get rubber film.
Machine specifications:
Model | X(S)K-250 (10inch) |
Roller diameter | 250mm |
Roller working length | 620mm |
Linear speed of front roll | 14.4m/min |
Speed ratio of front & rear roll | 1:1.17 |
Max. roller gao | 8mm |
Capacity per batch | 10-15kg |
Driving motor | 18.5kw |
Machine frame is made of cast iron.
Compared with ordinary ZQ series speed reducer, the hard-teeth gear box has the advantages of higher transmission efficiency & lower noisy.
Equipped rotatry jointer for water cooling, no leakage and long service life.
Other customized configuration like stock blender, gap auto adjustment etc., please contact with us!
Wish you a booming business!
