|Working Length:||900mm||Liner Speed Of Front Roll:||16.25m/min|
|Speed Ratio:||1:1.25||Max. Nip:||10mm|
|Caspacity Per Batach:||20~35kg||Driving Motor:||30kw|
open mill rubber mixing,
rubber lab mill
Highly Effective Mixing Rubber

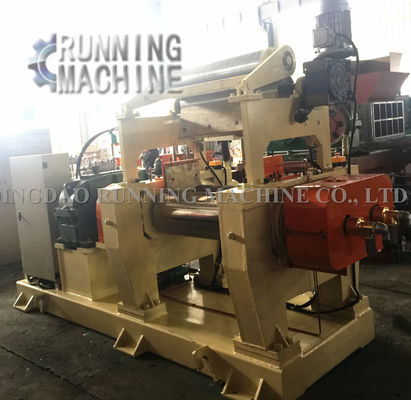

Open Mixing Mill Machine with Blender XK-360 (14 inch)
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials.
The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
1. 40 years on rubber vulcanizing press manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packaging.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
---Parameter of rubber mixing mill
|Roll working length (mm)||320||620||900||1000||1200||1530||2000|
|Front roll speed (m/min)||10||16.96||16.22||18.78||21.1||25.8||28.4|
|Roll speed ratio||1:1.21||1:1.08||1:1.22||1:1.17||1:1.17||1:1.17||1:1.18|
|Motor power (kw)||7.5||22||37||45||55||90/110||160|
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
