Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating

Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating
Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating

Large Image :  Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating

Product Details:
Place of Origin: CHINA
Brand Name: RUNNING
Certification: CE SGS
Model Number: XJ-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: FCL
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20SETS/M

Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating

Description
Motor Power: 75KW Capacity: 800KG/H
Screw Dia: 150mm Max Screw Speed: 4.5-45r/min
Overall Size: 4100x1600x1630mm
High Light:

silicone extruder machine

,

cold feed extruder machine

XJW-120 Cold Feed Rubber Hose Extruder Extrusion Machine with Temperature Control System



USED FOR:

Cold feed rubber extruder is used for extruding half-finished rubber products such as inner tube, tire tread, rim band, rubber



Spec
Item
GE90KS×14D GE120KS×14D GE150KS×16D GE200KS×18D GE200KS×18D GE250KS×14D
Screw dia mm 90 120 150 200 200 250
L/D ratio   14:1 14:1 16:1 18:1 12:1 12:1
Max.screw speed r/min 60 55 44 33 26 22.63
Hopper mm 130×122 164×140 200×165 260×210 260×210 320×246
Row qty of pin   8 10 10 12 10 10
Pin qty.of each row   6 6 8 10 10 12
Model of motor   Z4-200-21 Z4-200-31 Z4-250-21 Z4-280-32 Z4-280-11 Z4-280-32
Power kW 67 90 185 315 250 315
Zone of hot water circulation   4 4 4 4 3 4
Thermal cycle heating power kW 24 48 48 54 42 48
Capacity kg/h 360 800-1000 1800-2000 2100-2600 2300 3000
Overall dimensions L mm 2540 3996 6000 7770 6250 6885
W mm 1493 1575 2600 3000 3000 2400
H mm 1416 1760 1800 2035 2035 2090
About weight t ~4.5 ~6 ~7.25 ~16.6 ~12.6

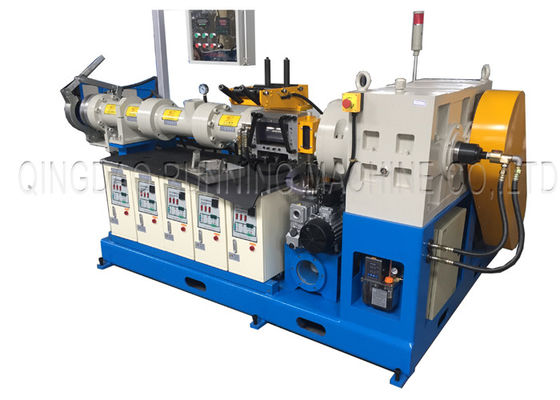

Photos



Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating 0Professional Cold Feed Extruder Rubber Processing Equipment For Bead Wire Coating 1



Salient Features

  1. Electric heating system, even temperature spread along the roll
  2. Chrome plated surface, no split-off
  3. Adjustable gap, variable sampling thickness
  4. Revers jog rotating
  5. If dual inverter & motor is equipped, the two roll mill can has any speed ratio for different mixing purposes
  6. High precision PID temperature controller with PLC control
  7. Protection cover on roller top
  8. Emergency safety switch at knee level
  9. Emergence locking switch on control panel
  10. Touch screen graphic user interface
  11. Variable speed control with frequency inverter
  12. Optional the same speed of the two rolls
  13. Optional oil heating system



Services Commitment


1. Our engineers can design target machines for you and send the drawing to confirm.
2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas technical support
6.Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.

FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
