Portable Right Angle Conveyor Belt Splicing Machine

Portable Right Angle Conveyor Belt Splicing Machine
Portable Right Angle Conveyor Belt Splicing Machine Portable Right Angle Conveyor Belt Splicing Machine

Large Image :  Portable Right Angle Conveyor Belt Splicing Machine

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: ZLJ/LBD-1000,1200,1400......
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Plywood case ( fumigation-free )
Delivery Time: 7 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month

Portable Right Angle Conveyor Belt Splicing Machine

Application: Splicing Rubber Conveyor Belt Applied Width: 800mm-2500mm
Host Body Material: Aluminum Alloy Heating Method: Electrical Heating
Pressure Mode: Water Atuo Pressure Pump
High Light:

conveyor belt joint press


conveyor belt splicing equipment


conveyor belt splicing machine

Portable Right-angle/Bias-angle Type Conveyor Belt Splicing Machine used for Splicing Fractured Conveyor Belt




Portable Right-angle Type Conveyor Belt Splicing Machine is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field

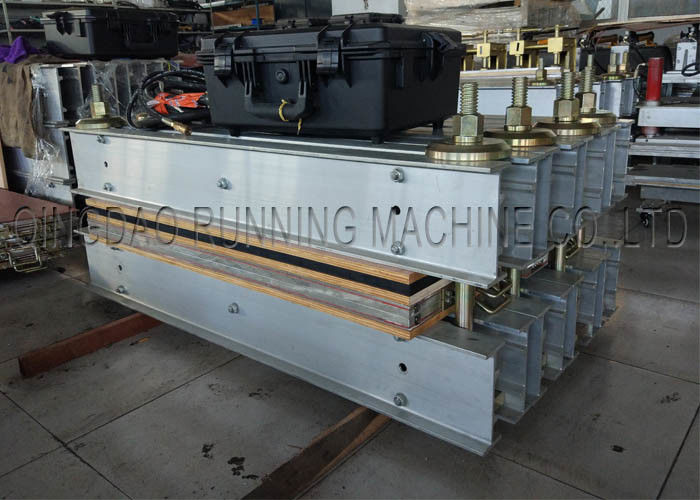

Portable Right Angle Conveyor Belt Splicing Machine 0


Brief Introduction:


1. Machine Maximum size: from 300MM-2000MM,Or according the customer
2. Voltage: 220V 380V 415V 660V 50HZ;
3. Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5. The temperature difference of sulfide surface: ±2°c.
6. Temperature adjustment range: 0~300°c.
7. Vulcanizing pressure: 0~2.5 MPa (details refer to users' specifications and factory markings);
8. Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10. Rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11. Users could order spare electric pumps additionally according to the requirements.


Aluminum Beam:

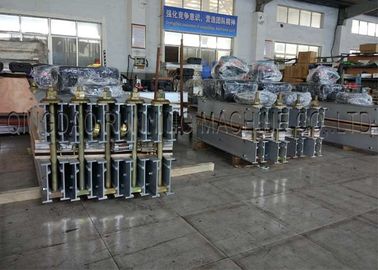

Portable Right Angle Conveyor Belt Splicing Machine 1


New technology water pressure bladder:


Portable Right Angle Conveyor Belt Splicing Machine 2


Electrical heating element:


Portable Right Angle Conveyor Belt Splicing Machine 3


Machine Specification:


Model Applied Width(mm) Motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860
