Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine

Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine

  • High Light

    batch off cooler

    ,

    rubber cooling machine

    ,

    batch off cooling machine

  • Application
    Cooling Rubber Sheet
  • Total Power
    25~34kw
  • Material
    45# Steel Or Stainless Steel
  • Relay Brand
    Schneider
  • Pneumatic Brand
    SMC
  • Place of Origin
    QINGDAO, CHINA
  • Brand Name
    RUNNING
  • Certification
    ISO CE
  • Model Number
    XPG-800
  • Minimum Order Quantity
    1 SET
  • Price
    $11,000~$12,000
  • Packaging Details
    By FCL
  • Delivery Time
    31days
  • Payment Terms
    T/T, L/C, Western Union, MoneyGram
  • Supply Ability
    50sets/month

Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine

Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine





Product Description


Production Name: Rubber Sheet Cooling Machine, Batch off Machine
Model: XPG-800
Application: Floor Standing Batch off Cooling Machine For Rubber Sheet is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.

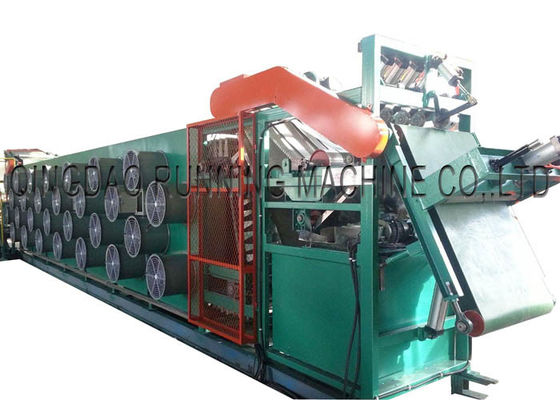

Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine 0


Salient Features


1). There are two structure types: overhead and floor-standing types, whose hanging racks are vertically turning with compulsive cooling.
2). The rubber strip hanging bar adopts step by step cylinder or motor-reducer for driving.
3). The clients can choose high or low disposition according to the practical requirements.
4). The high dispostition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio≤100mm
5). There are three working positions for auto entering and outputting of material tray; auto rubber collecting device, auto cutter, it has high automatization and can realize nobody operating.

Technical Parameters



Cooling Machine Model No. XPG-600 XPG-800 XPG-900
Max. rubber sheet width mm 600 800 900
The thickness of the rubber sheet mm 4-10 4-10 6-12
Rubber sheet temperature over room temperature after cooling C 10 15 5
Linear speed of taking-in conveyer m/min 3-24 3-35 4-40
Linear speed of sheet hanging bar m/min 1-1.3 1-1.3 1-1.3
Hanging height of the sheet hanging bar m 1000-1500 1000-1500 1400
Number of cooling fans Set 12 20-32 32-34
Total power kW 16 25-34 34-50
Overall size L mm 14250 16800 26630-35000
W mm 3300 3400 3500
H mm 3405 3520 5630
Gross weight t ~11 ~22 ~34


Structural Features


1) The batch-off unit consists of mainframe and electrical control system.
2) The mainframe is composed of splicer, printing, slitter, isolation cooling, lifting device, hanging strip cooling, auto wig wag section, weighing, handrail, platform and supporting bracket etc..
3) The electrical control system consists of main control cabinets, and there are emergency stop device in key areas.



Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine 1



Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine 2

Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine 3



Services Commitment


1. Our engineers can design target machines for you and send the drawing to confirm.
2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas technical support
6. Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.



Machine delivery:



Hanging Rod Automatic type Rubber Compound Sheet Continuously Cooling Machine 4
