Product Details:
|
Motor Power: | 5.5KW | Control Model: | Automatic Model |
---|---|---|---|
Working Width: | 1000 Mm | Work Pressure: | 160T |
Knife Stroke: | 680mm | Dia Piston: | 150mm |
Highlight: | rubber bale cutter machine,rubber cutting equipment |
2019 New XQL-80 Car Tires Rubber Cutting Machine for Natural Rubber to Mylasia
Usage of rubber cutter:
This rubber cutter is mainly used to cut the natural rubber,synthetic rubber and other plastic materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
1. Using high hardness and high precision circular knife cutting, pneumatic feed, pneumatic the tailstock (the tailstock has owe pressure protection device);
2. Cutting spindle replaceable steering, satisfy customer's different way to cut,
3. According to the customer's need to increase the feeding diameter to ø 300mm, at circular knife parts increase drive motor and reducer, knife seat installs the precision linear guide bearing, make cutting more stable, cutting out of finished edge is more beautiful, especially suitable for cutting large diameter of bubble surface materials;
4. Can increase the sword type flat knife slitting structure (manual cutting machine slitting functions), can be manual pushing flat blade for cutting, more convenient, meanwhile slitting flat end face, Cutting spindle domains on PE hose protect knife, prevent blade bruising,
Operation is very simple; 5. Slitting length by hexagon positioning shaft decision, can set up six basic slitting width,also in six basic width of cutting, multiple cutting width accurate location.
Model |
XQL-80 |
XQL-160 |
Knife Width(mm) |
660 |
1000 |
Knife Stroke(mm) |
680 |
680 |
Diameter of the Piston(mm) |
150 |
150 |
Time Taken by the Stroke(s) |
16-25 |
16-25 |
Motor Power(KW) |
5.5 |
5.5 |
Overall Dimension(mm)(L*W*H) |
1900*720*2580 |
2240*720*2580 |
Machine Weight(Kgs) |
1000 |
1600 |
Remarks |
Can be equipped with working table according to cutomers' requirements |

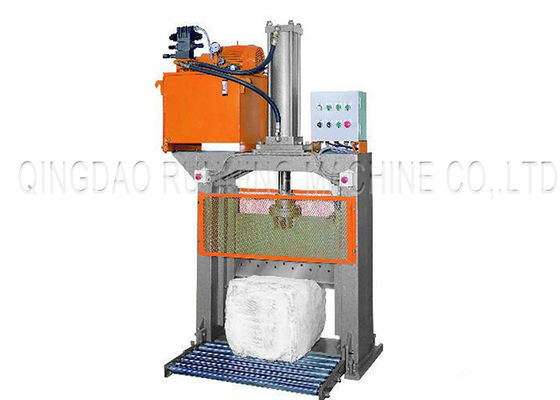

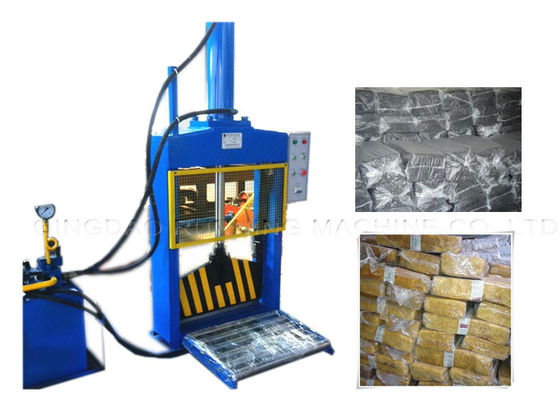

Photos
