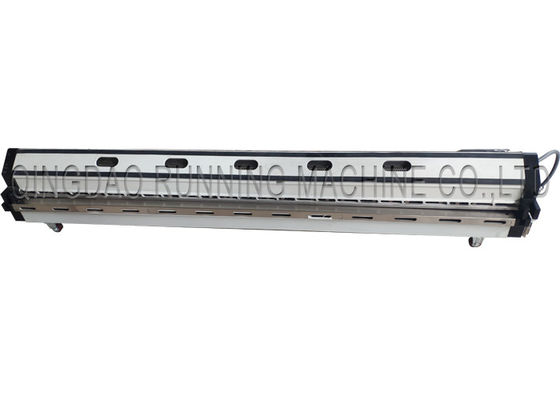

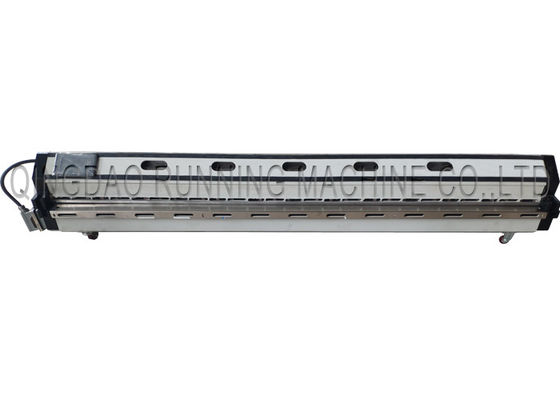

Air Cooling Type PVC Belt Jointing Machine

Air Cooling Type PVC Belt Jointing Machine
Air Cooling Type PVC Belt Jointing Machine Air Cooling Type PVC Belt Jointing Machine Air Cooling Type PVC Belt Jointing Machine

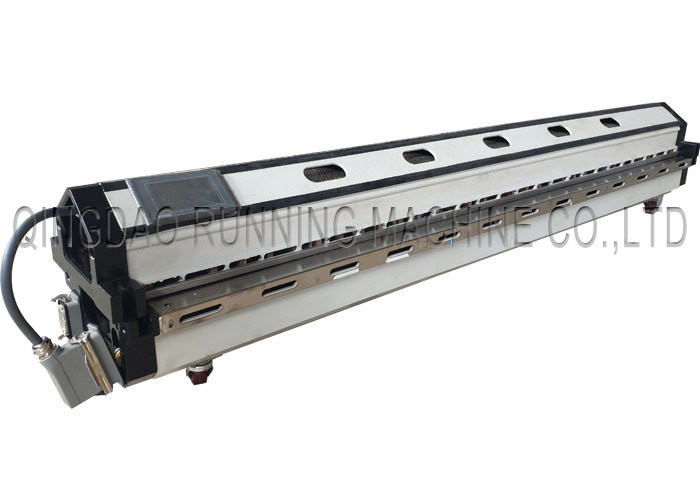

Large Image :  Air Cooling Type PVC Belt Jointing Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: 1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Plywood case (Fumogation Free)
Delivery Time: 15days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month

Air Cooling Type PVC Belt Jointing Machine

Description
Usage: Jointing PVC Belt Jointing Range: 300-2100mm
Heating Mode: Electrical Heating Cooling Mode: Air Fast Cooling
Pressurize Mode: Compression Air Control Mode: PLC Fully Automatic
High Light:

1500mm PVC Belt Jointing Machine

,

Electrical Heating PVC Belt Jointing Machine

,

Air Cooling Type Belt Jointing Machine

Air Cooling Type Electical Heating Method 1500mm PVC Belt Jointing Machine



Application:



PVC belt Hor Vulcanizing Press Jointing Machine is used for Jointing / Splicing PVC belt. The machine body is made of Aluminum Alloy, has the advantage of high strength and light weight,

PVC  belt jointing machine has fast heating speed and use air fast cooling after finishing jointing.



Air Cooling Type PVC Belt Jointing Machine 0



Main features:



1. It takes 5 minutes to heat up to 172℃,and takes 3 minutes to cool down to 60℃.temperature error below 2℃,

completely meets the requirement of the belt joint.

2. Balloon adding pressure:0-3.0kg adjustable.

3. Intelligent digital display control: automatic heating, automatic temperature control, automatically cut off power supply.

4. Pump water pump, use conveniently;

5. Two machined stainless platen, the beams are firm, durable and no distortion.



Air Cooling Type PVC Belt Jointing Machine 1



Machine specification:



Model 300 600 900 1200 1500
Effective length 305mm / 12″ 610mm / 24″ 914mm / 36″ 1219 mm / 48″ 1524 mm / 60″
Effective width 120mm / 4.7″ 120mm / 4.7″ 120mm / 4.7″ 120 mm / 4.7″ 120 mm / 4.7″
Weight lower part 11.5 kg 18kg 23kg 28.5 kg 32 kg
Weight upper part 12kg 13kg 18kg 25.5 kg 30 kg
Total weight 21kg 30kg 38kg 54 kg 62 kg
Overall height 220mm 225mm 225mm 225mm 225mm
Max. pressure 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI
Max. temperature 200 ℃/390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉
Packaging list(L x W x H) 790x430x420mm 1090x430x420mm 1390x430x420mm 1720*450*430mm 2030*470*410mm
Gross weight 50 kg 72 kg 85kg 104 kg 127 kg



Jointing method:



Air Cooling Type PVC Belt Jointing Machine 2

Air Cooling Type PVC Belt Jointing Machine 3



Related machine - Belt Finger Cutting Machine



Air Cooling Type PVC Belt Jointing Machine 4



Customer visit:



Air Cooling Type PVC Belt Jointing Machine 5
