Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System

Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System
Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System

Large Image :  Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System

Product Details:
Place of Origin: QINGDAO, CHINA
Brand Name: RUNNING
Certification: ISO CE
Model Number: XLB-D1200*1200*1/1.20MN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: FCL
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System

Description
Clamping Force: 120T Heating Plate Size: 1200*1200mm
Platen Daylight: 400mm Plunger Stroke: 400mm
Qty. Of Piston: 4 Pcs Heating Method: Electrical Heating
High Light:

hydraulic rubber press

,

rubber mat making machine

,

120T Rubber Tiles Manufacturing Machines

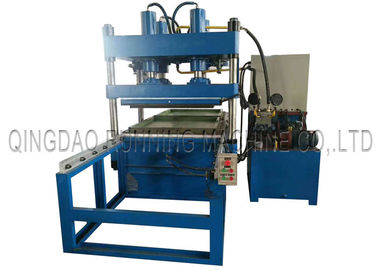

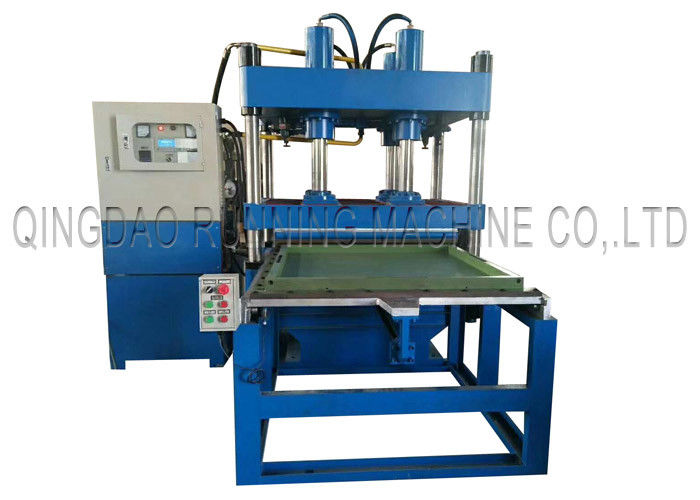

120T Pressure 1000 * 1000mm Rubber Tiles Hydraulic Molding Press Machine with Double Side Mold Sliding System



Application:



This rubber tile making machine is used for making rubber tiles used recyclied rubber/tyre powder. The rubber tiles size can be 1000*1000mm, 500*500mm or customized size. The tile shape can be square type, self-locking type or other types.





Machine specification:



Parameter/model XLB1150*1150*2 XLB1200x1200x1 XLB-D550*550*4
Pressure (T) 160T 100/120/160 50/80
Hot plate size (mm) 1150*1150*60 1200*1200*60 550*550*60
Plates Distance (mm) 200~260 200-400 150
Working layer 2 1 4
Hot plate quantity 3 2 5
Piston stroke (mm) 450 200-400 400
Motor power (kw) 5.5 5.5/7.5 2.2
Weight(kg) 4500 4000 2000



Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System 0

Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System 1



Mold types:



Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System 2



Our factory:



Rubber Tiles Manufacturing Machines With Double Side Mold Sliding System 3
