Product Details:
|
| Application: | Mixing Rubber Compound | Mixing Volumn: | 35L/55L/75L/110L/150L |
|---|---|---|---|
| Driving Motor Power: | 55kw, 75kw, 110kw, 185kw, 220kw | Titling Angle: | 110 Or 140 Degree |
| Tational Speed: | 36/30 R/min | Pressure Of Compressed Air: | 0.6-0.8Mpa |
| Cooling Water Pressure: | 0.3*0.4Mpa | ||
| Highlight: | rubber dispersion kneader,rubber mixing banbury machine,150L Rubber Kneader Machine |
||

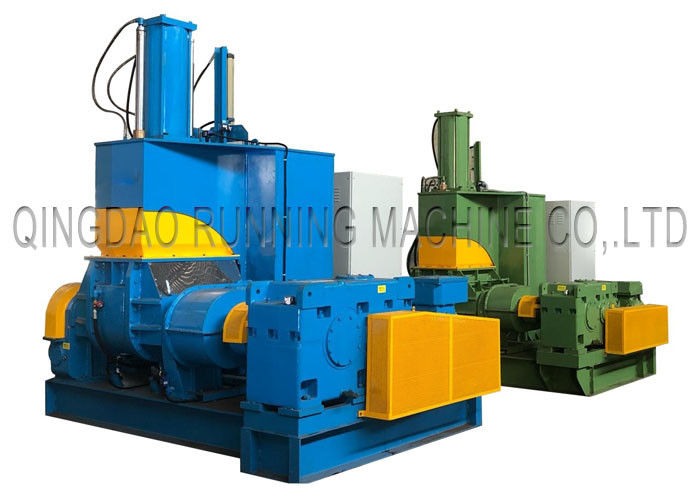

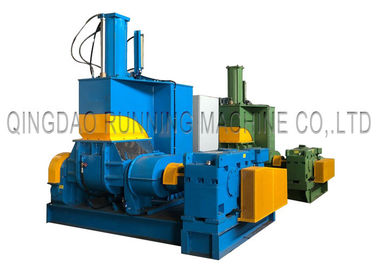

35L/55L/75L/110L/150L High Efficiency Rubber Kneader Machine, Rubber Intensive Kneader Mixer
Rubber kneader machine's Applications
(A) Rubber Compounds & End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber, Rubber Tires, Packing, Gaskets, Hose, Belts, Shoe Sole, Sponge, Electric Wire Covering, Casters, Golf Balls, Oil Seals, Weather Strips, Waterproof Sheet, EVA, Tread Compound, Battery Containers etc.
(B) Plastic Compounds & End Products
HDPE, LDPE, PP, PVC, ABS, PS, EVA, Thermo set Plastic Compounds & Profiles, Wire Covering, BMC etc.
Product Description
The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs.
Construction
Mixing Chamber & Rotors: The mixing chamber is fabricated from alloy steel & is W-shaped.
The chamber is fitted with two rotary blades.
The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating.
The rotors are also made of special steel and are hard chromed, after the tips of the rotary blades are welded with stellite.
These blades are coupled with rotary joints thus enabling to take steam or water.
Technical parameters
| Model | X(S)N-10X32 | X(S)N-20X32 | X(S)N-35X30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110x30 | X(S)N-150x30 |
|
Total volume of mixing chamber |
25L | 45L | 75L | 125L | 180L | 250L | 325L |
|
Working volume of mixing chamber |
10L | 20L | 35L | 55L | 75L | 110L | 150L |
| Driving motor power | 15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
| Tilting motor power | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
| Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
|
Rotational speed of the rotor (front/rear) |
32/23.5 r/min |
32/25 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
|
Pressure of compressed air |
0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
|
Capacity of compressed air |
≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
|
Pressure of cooling water |
0.2-0.4MPa | 0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
|
Pressure of heating steam (plastic mixing) |
0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Overall dimension |
2580X1300 X2280mm |
2630X1520 X2550mm |
3200X1900 X2950mm |
3280X1930 X3070mm |
3330X2620 X3340mm |
3930X3000 X3660mm |
4200X3300 X3900mm |
| Weight | 3300Kg | 4500Kg | 6500Kg | 7800Kg | 10500Kg | 14500Kg | 19500Kg |
Packing
