Product Details:
|
| Clamping Pressure: | 500T | Voltage: | 380V 50HZ Or Customized |
|---|---|---|---|
| Condition: | New | Type: | Vulcanizer, Column, Tablet Press, PLC Control, Plate Vulcanizing Press |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Making Tread Rubber For Retreading Plant |
| Piston Material: | Nodular Cast Iron | Vulcanizing Temperature: | Adjustable, 200 °C |
| Heating Method: | Steam Or Oil, Electrical / Oil System | ||
| Highlight: | rubber vulcanizing machine,rubber compression molding machine,Procured Tire Tread Making Machine |
||

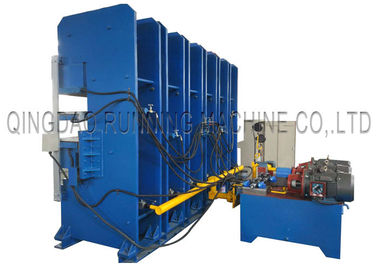

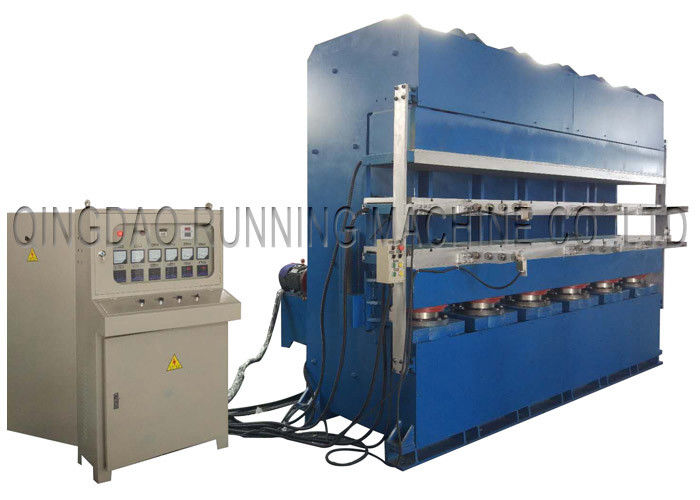

Precured Tyre Tread Rubber Molding Machine, Procured Tire Tread Making Machine
Product Description
Production Name: Tread Rubber Molding Machine, Procured Tread Making Machine
Model: XLB-3600*400, 4000*400......
Technical parameters:
| Model | XLB-D3600×400×2/5.0MN |
| Total Pressure | 500T |
| Size of heating plate | 3600×400×70mm |
| Daylight | 200 mm |
| Diameter of piston | Φ250mm×6 pcs |
| Max Stroke of piston | 400mm |
| Driving motor power | 7.5kw×2+7.5kw=22.5kw |
| Power supply needed | 380V 50HZ 3-phase or customized |
| Heating plates number | 3 |
| Working layer no | 2 |
| Heating Mode | Electrical heating |
| Total heating power | 68.4kw |
| Control mode | Relay Control, with automatic mold push-pull |
Product made by the Tread Rubber Making Machine
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. There are two kinds of heating method for hot platen, steam heating and electric heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Other machines for your choice:
Services Commitment
1. Our engineers can design target machines for you and send the drawing to confirm.
2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas technical support
6.Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.
