Product Details:
|
Motor Power (Kw): | Motor Power (Kw) | Voltage: | 220/380/410/460 |
---|---|---|---|
Heating: | Electrical | Cooling Time(Min): | In 15-30 Mins |
Width: | 800,1000,1200mm | Color: | Silver |
System: | Water System | Market: | Argentina,USA,Pakistan... |
Condition: | New | Warranty: | 24 Months |
Dimension(l*w*h): | 1592x830x580 Mm | Material: | Aluminum Alloy |
High Light: | Welding Conveyor Belt Splicing Machine,1200mm Conveyor Belt Splicing Machine,Dock Conveyor Belt Splicing Machine |
Welding Conveyor Belt Splicing Machine 1200mm Width
Welding Conveyor Belt Splicing Machine 1200mm Width

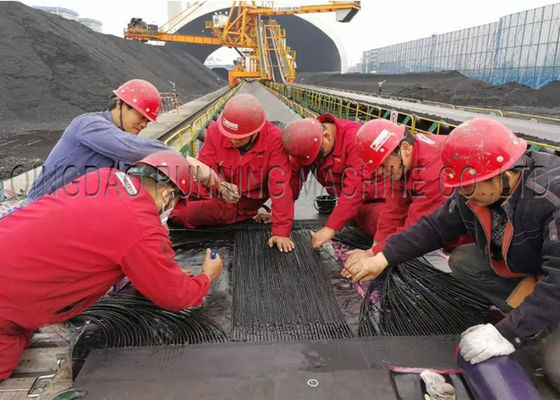

How to complete the perfect splicing of the rubber conveyor belt by the belt splicing machine, please see the composition of it.
Qingdao Running Machine co., let 's Welding Conveyor Belt Splicing Machine 1200mm Width is generally composed of four parts, a clamping mechanism, two control systems, three pressure systems, and four heating systems. The clamping mechanism is generally composed of a frame and bolts. The control system is composed of an electric control box and a secondary wire. The pressure system is composed of a hydraulic pressure plate and a pressure test pump, and the heating system is composed of a heating plate and a heat insulation plate.
The belt vulcanizing machine generally requires the customer to confirm three questions. One is the width of the customer's belt; the other is the width of the belt glue; the third is whether the vulcanizer is explosion-proof or non-explosion-proof.
Advantage features:
1. Machine maximum size: from 650MM-2400MM;
2. Voltage: 380V 660V 480V 440V 415V 400V or 220V;
3. Fast cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 50 minutes
6. Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
Technical Parameters (Reference)
(Except for 830mm, 1000mm and other conventional sizes, any non-standard size is accepted.)
Model | Belt width(mm) | Power(kw) | Dimensions | Weight(kg) | Single most important |
(L*W*H mm) | |||||
ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
Packaging | |
Size | 2 m (L) * 1.5 m (W) * 1m (D) |
Weight | 1.2 T |
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request. |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
