Product Details:
|
Usage: | Jointing PVC Belt | Jointing Range: | 300-2100mm |
---|---|---|---|
Heating Mode: | Electrical Heating | Cooling Mode: | Air Fast Cooling |
Pressurize Mode: | Compression Air | Control Mode: | PLC Fully Automatic |
High Light: | 2100mm Conveyor Belt Joint Machine,PLC Conveyor Belt Joint Machine,28PSI Conveyor Belt Joint Machine |

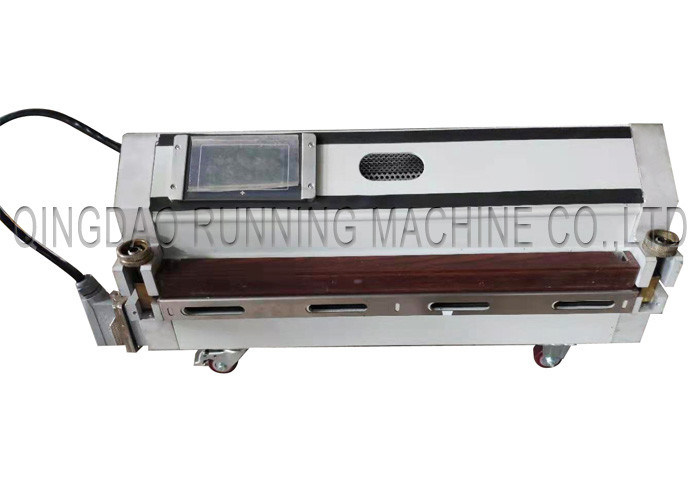

PVC Belt Hot Vulcanizing Press Air Fast Cooling Type Jointing Machine , PVC Conveyor Belt Jointer
Application:
PVC belt Hor Vulcanizing Press Jointing Machine is used for Jointing / Splicing PVC belt. The machine body is made of Aluminum Alloy, has the advantage of high strength and light weight,
PVC belt jointing machine has fast heating speed and use air fast cooling after finishing jointing.
Main features:
1. It takes 5 minutes to heat up to 172℃,and takes 3 minutes to cool down to 60℃.temperature error below 2℃,
completely meets the requirement of the belt joint.
2. Balloon adding pressure:0-3.0kg adjustable.
3. Intelligent digital display control: automatic heating, automatic temperature control, automatically cut off power supply.
4. Pump water pump, use conveniently;
5. Two machined stainless platen, the beams are firm, durable and no distortion.
Machine specification:
Model | 300 | 600 | 900 | 1200 | 1500 |
Effective length | 305mm / 12″ | 610mm / 24″ | 914mm / 36″ | 1219 mm / 48″ | 1524 mm / 60″ |
Effective width | 120mm / 4.7″ | 120mm / 4.7″ | 120mm / 4.7″ | 120 mm / 4.7″ | 120 mm / 4.7″ |
Weight lower part | 11.5 kg | 18kg | 23kg | 28.5 kg | 32 kg |
Weight upper part | 12kg | 13kg | 18kg | 25.5 kg | 30 kg |
Total weight | 21kg | 30kg | 38kg | 54 kg | 62 kg |
Overall height | 220mm | 225mm | 225mm | 225mm | 225mm |
Max. pressure | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI |
Max. temperature | 200 ℃/390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ |
Packaging list(L x W x H) | 790x430x420mm | 1090x430x420mm | 1390x430x420mm | 1720*450*430mm | 2030*470*410mm |
Gross weight | 50 kg | 72 kg | 85kg | 104 kg | 127 kg |
Jointing method:
